Changing Engine Oil and Filter—9360R Tractor

RXA0115675-UN-10MAY11

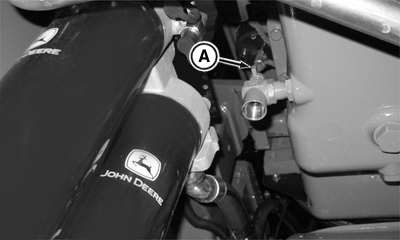

Crankcase Drain Valve

RXA0115677-UN-10MAY11

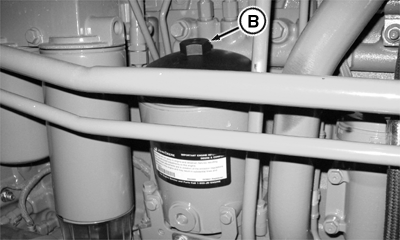

Remove Filter Element

RG11628-UN-01FEB01

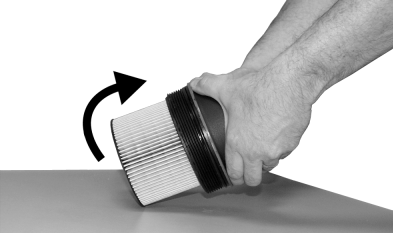

Remove Filter Element From Cap

A - Engine Drain Valve

B - Engine Oil Filter Cover

SERVICE INTERVAL

SCHEDULED — 500 HOURS *

* Interval can vary depending upon factors such as type of oil and fuel used, or operating conditions. See notes below.

IMPORTANT: Sulfur content should not exceed 0.10%. Sulfur content less than 0.10% is preferred. Refer to Fuel, Lubricants and Coolant section for more information on oil change intervals.

NOTE: The initial break-in service interval of a new or rebuilt wet sleeve engine with Break-In Plus must go at least 100 hours to assure the surface mating of the rings and liners has had an opportunity to occur. The 100 hour minimum applies to all new or rebuilt engines. The maximum service interval is the same as the service interval recommendations listed in Engine Oil and Filter Service Intervals for your engine. To confirm which engine your tractor is equipped with, see Identification Numbers Section - Record Engine Serial Number in this Operator's Manual.

For subsequent oil changes, see Engine Oil and Filter Service Intervals for your engine located in the Fuels, Lubricants, and Coolant Section of this Operator's Manual.

Operate engine to warm oil. Stop engine.

Place a large catch pan below engine drain valve (A) and open valve to drain oil.

NOTE: Do not remove relief valve plug on side of filter housing. Oil in filter housing will drain back into crankcase when filter is removed.

1. Remove oil filter cover (B) using a 32 mm (1.25 in.) wrench.

2. Remove cap and filter element.

3. While holding cap, strike filter element against a solid surface, as shown, to unfasten filter from cap.

4. Discard used filter.

5. Remove O-ring seal and replace with new O-ring provided with new filter element.

6. Press new filter element into cap until it snaps into place.

7. Insert cap and filter assembly into oil filter housing. Screw cap into place and tighten cap to specification.

   Item	Measurement	Specification
   Oil Filter Cap
   Cap	Torque	40 N˙m (30 lb-ft)

8. Close engine crankcase drain valve.

9. Remove engine oil fill cap and refill crankcase with seasonal viscosity grade oil.

   Crankcase Capacity with Filter
   9360R Interim Tier4/EU Stage III B .............. 34 L (9.0 gal)

10. Start and run engine for a two minutes. Then stop engine and check for oil leaks.

11. NOTE: Crosshatch area is considered FULL. Engine oil level indicator dipstick has a "crosshatch" area as a "safe" zone.

    Recheck oil level with dipstick to ensure level is in crosshatch area.
