Inspect Drawbar Support Cap Screws

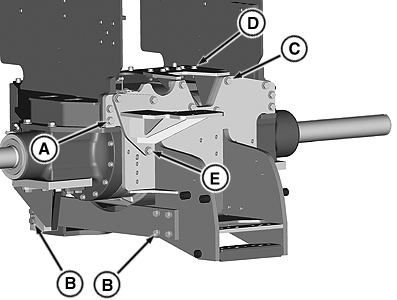

RXA0099170-UN-30SEP08
Heavy Duty Drawbar Support

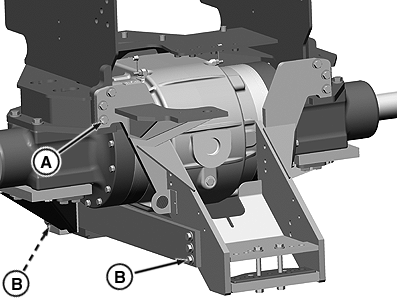

RXA0099171-UN-30SEP08
Standard Drawbar Support
|
SERVICE INTERVAL — DAILY OR 10 HOURS |
Inspect and tighten drawbar Support Cap Screws as required.
|
Drawbar Support Cap Screw Torque Specifications |
|
|---|---|
|
Drawbar Support Cap Screws to Frame (A) |
610 N˙m (450 lb-ft) |
|
Support Stabilizer Cap Screws to Drawbar Support (B) |
610 N˙m (450 lb-ft) |
|
Centerlink Support Cap Screws to Drawbar Support (C) |
610 N˙m (450 lb-ft) |
|
Centerlink Support Cap Screws to Frame (D) |
310 N˙m (230 lb-ft) |
|
SCV Bracket Cap Screws to Drawbar Support (E) |
610 N˙m (450 lb-ft) |
|
SCV Stack Cap Screws to SCV Bracket (Not Shown) |
125 N˙m (92 lb-ft) |
|
SCV Line Clamp Screw (Not Shown) |
30 N˙m (22 lb-ft) |
|
