Checking Air Intake System

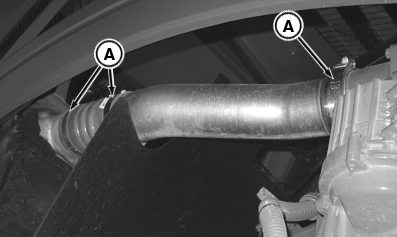

RXA0109037-UN-05AUG10

Air Intake System - Left Side

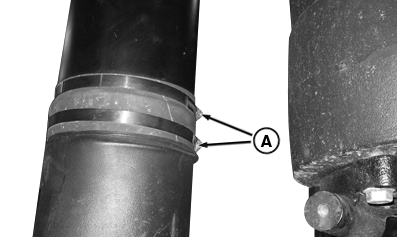

RXA0109035-UN-05AUG10

Air Intake System - Right Side

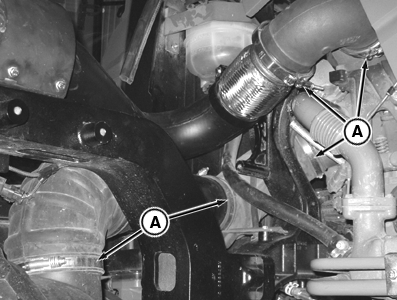

RXA0109033-UN-27OCT10

Air Intake System - Right Side

A - Clamps

SERVICE INTERVAL — 500 HOURS

IMPORTANT: When tractor is operated with loose air intake clamps it may result in damage to engine.

NOTE: Not all air intake clamps are shown, but all need to be checked and tightened, if required.

Check air intake system for loose clamps (A) or cap screws at service or 500 Hour intervals.

Tighten air intake system clamps and cap screws to specification.

Item	Measurement	Specification
Air Intake Clamps (A)	Torque	8 N·m (70 lb-in.)
