Changing Transmission/Hydraulic Reservoir/Axle Oil—24-Speed POWRSYNC Transmission

SERVICE INTERVAL —

INITIAL — 1500 HOURS

SCHEDULED — 1500 HOURS *

* Intervals can vary according to operating conditions

IMPORTANT: Prevent premature axle failure. Carefully follow drain and fill procedure.

NOTE: The transmission, hydraulic reservoir, front and rear axles are included in the hydraulic system.

Use an oil drain container with a capacity of 255.6 L (67.5 gal).

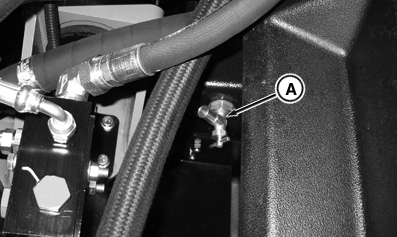

  1. RXA0107010
    RXA0107010-UN-07APR10

    A - Reservoir Drain Valve

    Park tractor on level ground and shut engine OFF. Allow oil to cool for a few minutes.


  2. Attach a hose to the hydraulic reservoir rear drain valve (A) located in gudgeon area. Open valve and direct hose into a oil catch container.

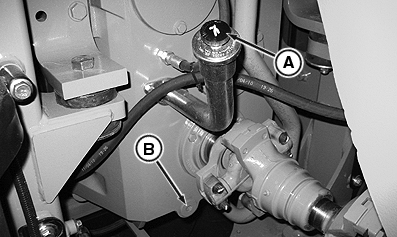

  3. RXA0113220
    RXA0113220-UN-17JAN11

    Transmission Drain Plug

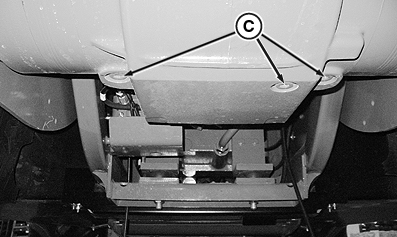

    RXA0113210
    RXA0113210-UN-17JAN11

    Front Axle Drain Plugs

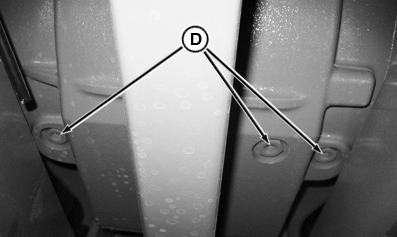

    RXA0113204
    RXA0113204-UN-17JAN11

    Rear Axle Drain Plugs

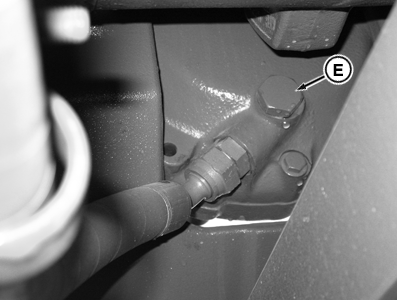

    RXA0119804
    RXA0119804-UN-15AUG11

    PTO Dropbox Drain Plug-Viewed From Below PTO Dropbox

    A - Transmission Fill Tube Plug

    B - Transmission Drain and Suction Screen Plug

    C - Front Axle Drain Plugs

    D - Rear Axle Drain Plugs

    E - PTO Dropbox Drain Plug

    Loosen and remove fill tube plug (A) to vent transmission case.


  4. Remove rear plug (B) to drain the transmission oil.

  5. Remove suction screen and clean screen with cleaning solvent.

  6. Reinstall suction screen and plug.

  7. NOTE: Remove all three drain plugs to completely drain axle oil and any debris from each separate axle compartment.

    Remove all three front axle plugs (C) to drain axle oil.

  8. Remove three rear axle plugs (D) to drain axle oil.

  9. Drain PTO drop box by removing plug (E), if equipped.

  10. Detach reservoir drain hose and close reservoir drain valve.

  11. Install all three removed transmission and all axle drain plugs (3 each).

    ItemMeasurementSpecification
    Transmission and Axle Drain PlugsTorque70 N·m (52 lb-ft)

  12. Install PTO dropbox drain plug and tighten plug, if equipped.

    ItemMeasurementSpecification
    PTO Drain PlugTorque70 N·m (52 lb-ft)

  13. Replace transmission oil filter. (See Replacing Transmission/Hydraulic/Axle Oil Filter—24-Speed POWRSYNC Transmission in this Section.

  14. Change hydraulic oil filters. (See Replacing Hydraulic Oil Filters in this Section.)

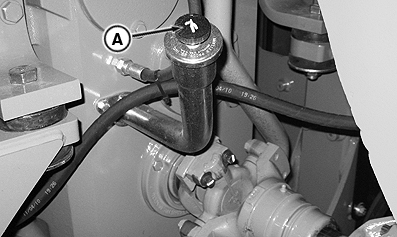

  15. RXA0113198
    RXA0113198-UN-17JAN11

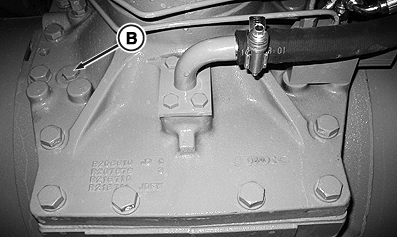

    RXA0113200
    RXA0113200-UN-06MAY11

    Front Axle Plug

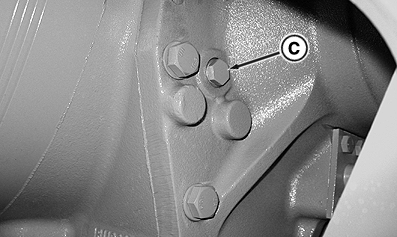

    RXA0113408
    RXA0113408-UN-25JAN11

    Rear Axle Plug

    A - Fill Tube

    B - Front Axle Bleed Plug

    C - Rear Axle Bleed Plug

    Pre-fill transmission with 37.9 L. (10.0 gal.) John Deere HY-GARD® or JDM J20C oil using the rear transmission fill tube (A).

    24-Speed POWRSYNC Transmission/Hydraulic Reservoir/Axle System Capacities (with Filter)

    Transmission/Hydraulic Reservoir/Axle System: (Reference for topping off the system.)



    Hydraulic Reservoir Volume Reference Mark:

    .. Full Hot Mark.............. 124.2 L (32.8 gal)

    .. Full Cold Mark.............. 101.9 L (26.9 gal)

    .. Min Cold Mark.............. 90.6 L (23.9 gal)

    .. Do Not Start Mark.............. 48 L (12.7 gal)

    Transmission Fill Volume:

    .. Manual Shift Transmission .............. 37.9 L (10.0 gal)

    Total Hydraulic Oil Fill Volume 1:

    .. 24-Speed Manual Shift Transmission, Single Reduction Axles, Standard Flow System .............. 255.6 L (67.5 gal)

    See Specifications Section for Additional Specifications


  16. Remove front axle plug (B) and rear axle plug (C) to purge air from axles.

  17. NOTE: Clean hydraulic oil system vent filter when side panel is removed. See CLEAN HYDRAULIC OIL SYSTEM VENT FILTER in this Section.

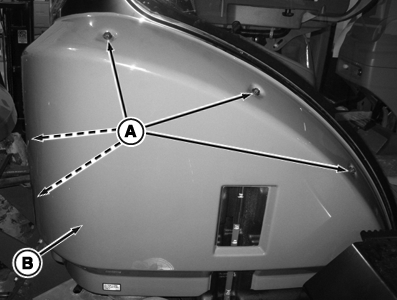

    RXA0117338
    RXA0117338-UN-18MAY11

    Cab Side Panel

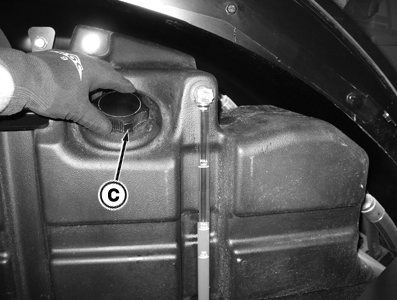

    RXA0117325
    RXA0117325-UN-18MAY11

    Hydraulic Reservoir

    A - Retaining Screws

    B - Side Panel

    C - Reservoir Fill Cap

    Remove right-hand cab panel retaining screws (A) and remove side panel (B).


  18. NOTE: The hydraulic reservoir will not hold the total oil volume for the system until engine is started and oil is circulated to transmission and axles, resulting in a lower reservoir oil level. The reservoir will need to be the correct level.

    Remove reservoir fill cap (C) and fill the hydraulic oil reservoir with the remaining oil volume using John Deere Hy-Gard or JDM J20C oil. Reinstall reservoir fill cap.

  19. Put transmission in PARK position and operate engine at 1200 rpm, to circulate oil to axles.

  20. Operate engine at 1200 rpm for approximately 5 minutes or until oil appears at axle ports.

  21. Shut engine OFF and install both axle plugs.

  22. IMPORTANT: Shut engine OFF and add more of remaining oil volume to reservoir if oil level drops to "Do Not Start" mark. Then resume operation of tractor at 1200 rpm per fill procedure.

    Check hydraulic oil reservoir sight gauge and top off reservoir to “Full Cold” mark. Reinstall reservoir fill cap.

  23. Transmission lever should be in PARK.

  24. Start tractor and set engine speed at 1200 rpm for 5 minutes.

  25. Transmission lever should remain in PARK.

  26. Shut engine OFF and wait 5 minutes for oil level to stabilize.

  27. NOTE: Do not reinstall right-hand cab side panel until after engine is started and oil circulated throughout hydraulic system and oil level in sight gauge has stabilized.

    Reinstall and tighten hydraulic reservoir fill cap.

  28. RXA0117336
    RXA0117336-UN-18MAY11

    Transmission/Hydraulic/Axle Oil Reservoir

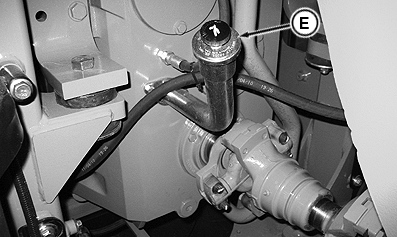

    RXA0113283
    RXA0113283-UN-17JAN11

    Transmission Fill Tube

    A - “Full Hot” Mark

    B - “Full Cold” Mark

    C - “Min Cold” Mark

    D - “Do Not Start” Mark

    E - Transmission Fill Tube

    Check oil level using hydraulic reservoir sight gauge located on right side of the cab.

    With everything cold, oil level should be between Min Cold (C) and Full Cold (B) marks.


  29. NOTE: The volume capacity between “Min Cold” and “Full Cold” marks is about 11.4 L. (3 gal.)

    Estimate volume that needs to be removed (or added).

    If reservoir oil level is visible between Min Cold (C) and Full Cold (B) marks, tractor can be used for normal operation.

    Identify oil volume required in reservoir until it reaches marks Min Cold (C) or Full Cold (B). If oil level is below (C) in sight gauge, add HY-GARD Hydraulic Oil through reservoir fill cap for 1500 Hour service procedure.

    For daily checks or top off, if sight gauge is below Min Cold (C) mark but above Do Not Start (D) mark, add required volume of HY-GARD Transmission-Hydraulic Oil using fill tube (E), at rear of transmission.

    If oil volume required is below the Do Not Start mark, add required oil through hydraulic reservoir fill cap.

    IMPORTANT: DO NOT start engine if oil level is below “Do Not Start” mark (D).

    NOTE: An exception is implements with large hydraulic cylinders that can remove large volumes of oil from the tractor's hydraulic system. Oil level should be near bottom mark of sight gauge with implement positioned to contain maximum amount of oil.

    NOTE: Oil level in reservoir will rise as temperature increases.

    Oil level in reservoir will fluctuate depending upon volume of oil exchanged with an attached implement.

    If low oil level results in pressure drop, a STOP engine light will come on.

  30. The hydraulic reservoir oil level checking procedure should be repeated and oil level adjusted until oil level stabilizes between Min Cold (C) and Full Cold (B) marks.

  31. If oil level is above Full Cold (B) mark, remove oil to bring it down to Full Cold mark level.

    The recommended method to remove oil is use the drain valve at rear of the reservoir, in hinge area under cab. A hose can be attached to the drain valve to direct oil into a container.

  32. Reinstall the right-hand cab side panel and tighten using retaining screws.

1 Full system volume includes reservoir

RW29387,00006C6-19-20111114
