Checking Engine Oil Level—9360R Tractor

RXA0110954-UN-21SEP10

9360R Tractor

RXA0109851-UN-15SEP10

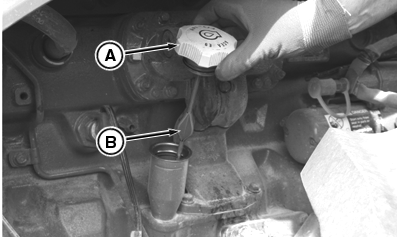

Engine Oil Dipstick -9360R Tractor

A - Fill Cap

B - Dipstick

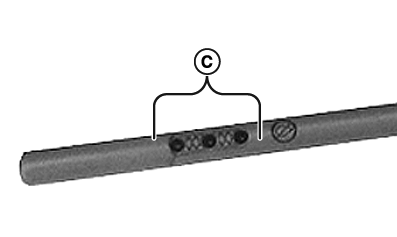

C - Cross-Hatch Area

SERVICE INTERVAL — DAILY OR 10 HOURS

Remove fill cap (A) and check oil level with tractor on level ground before starting tractor. If oil is below crosshatch area on dipstick, add oil.

NOTE: Cross-hatch area (C) is considered FULL.

Engine oil level indicator is a dipstick with a "crosshatch" area with a "safe" zone. After tractor has been parked on level ground overnight is best time to check oil level. Anywhere in the dipstick crosshatch safe zone is considered full.

Remove fill cap (A) and add oil in to fill tube, if oil is required. (See DIESEL ENGINE OIL in the Fuels, Lubricants and Coolant Section.)

Do not operate engine with oil level below the “ADD” mark on dipstick.
