CommandCenter™ Left Region

Left Region Boxes and their meanings are listed below;

RXA0122080-UN-30NOV11

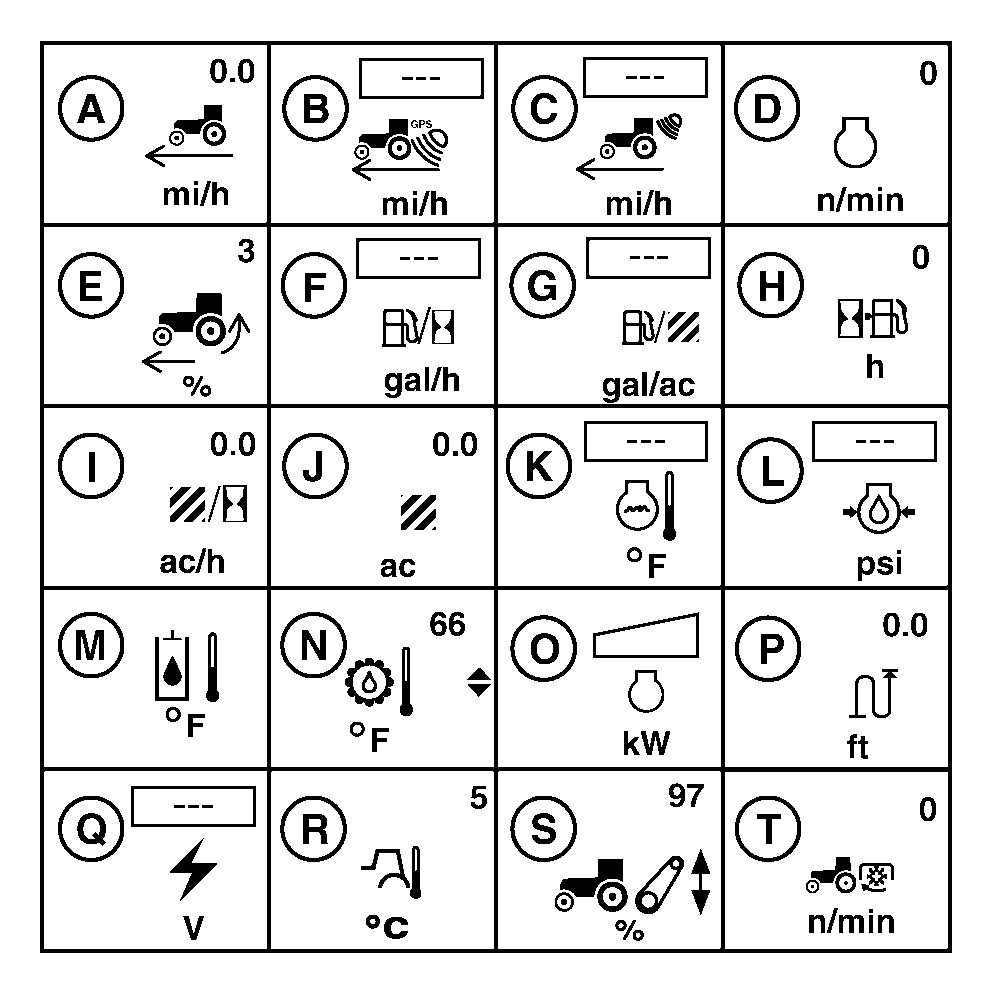

Listing Of Left Region Boxes

A — Wheel (Ground) Speed - Calibrated ground speed as measured at the axle.

B — GPS Speed

C — Radar Speed

D — Engine RPM - Engine speed in revolutions per minute.

E — % Slip - (Requires radar or GPS radar signal) Displays current wheel slippage as a percent of ground speed compared to the true ground speed.

F — Fuel Consumption Per Hour - Displays Liters (Gallons) consumed per hour.

G— Fuel Consumption Per Area - The amount of fuel used is accumulated over time based on the last area counter reset.

H — Fuel Remaining - Estimated time until fuel tank is empty.

I — Area Per Hour - Area covered per hour. A number based on current implement width and speed traveled over time.

J — Total Area Covered - Total area covered displayed in hectares or acres.

K — Engine Coolant Temp - Engine coolant temperature in °C or °F.

L — Engine Oil Pressure - Engine oil pressure in kPa or psi. Set engine speed in maximum rpm.

M — Hydraulic Oil Temperature - Hydraulic oil temperature.

N — Transmission Oil Temperature - Operating transmission oil temperature.

O — Power Display - Not Used.

P — Distance Counter - Accumulated distance the tractor has traveled displayed in meters or feet.

Q — System Volts - Supply system voltage.

R— Ambient Air Temperature - Ambient air temperature (from a sensor outside of cab at air inlet) is adjusted using a correction factor to minimize the effect of vehicle heat.

S — Hitch Position (If Equipped) - Displays current rear hitch position.

T — Rear PTO Speed (If Equipped) - Displays rear PTO speed in rpm.
