Access Manager

RXA0110765-UN-09SEP10

Access Manager

RXA0109627-UN-11AUG10

RXA0106142-UN-14JUL10

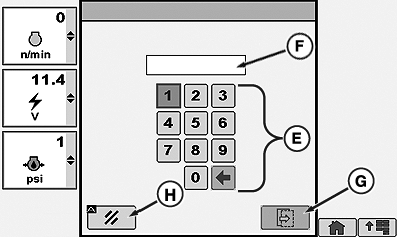

Password Page With Key Pad

A - Partially Locked Position

B - Locked Position

C - Open Position

D - Change Password

E - Key Pad

F - Display

G - Accept Button

H - Cancel Button

I - Change Password Box

1. Select Menu button.

2. Select Access Manager.

   NOTE: Access Manager page displays tractor components/capabilities that can be locked (B), partially locked (A) or unlocked (C).

3. When Access Manager page displays, select Current Access Level drop down box. (D). Drop down box allows the choice of owner or operator.

4. When drop down box displays, select owner or operator.

5. If owner is selected, select Change Password Box (I). When Password page displays, go to keypad (E) and type in new four number password. Numbers will display on password page display (F) as they are selected. when finished select Accept button (G) or Cancel button (H).

6. NOTE: While in owner mode, each option available can be preset to limit specific settings from being changed. Doing so reduces the risk of operator error because once set only those with the owner current password can unlock system to make changes. Access Manager changes made are not visible while in owner mode, but are visible in operator mode. To verify that changes made are in the system, log on as operator.


   RXA0107699-UN-14JUL10

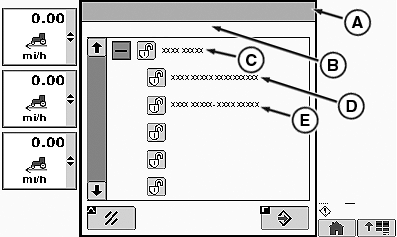

   Rear Hitch Operator Access Levels Page

   A - Page Name

   B - Notice

   C - Main Component/Capability

   D - Specific Component/Capability

   E - Specific Component/Capability

   Main component/capability can be locked by selecting padlock which will display on Access Manager page as locked. Specific components/capabilities can be locked resulting in partially locked display on Access Manager page or all can be unlocked and will be reflected on the Access Manager page.

   Using Access Manager allows owner to control the following applications on the tractor: The areas that are covered under access manager are listed below followed by a table for each area containing sub areas.

   • GreenStar™
   • Performance Monitor
   • Transmission
   • Lights
   • Engine
   • PTO
   • iTEC
   • Rear Hitch
   • SCV
   • Display
   • Layout Manager



   Main Component	Sub-Component	Specific Component
   Greenstar	Machine	Machine Offsets
   	Implement	Implement
   		New
   		General Settings
   		Implement Width
   		Track Spacing
   	Recording Source
   	Guidance	New/Edit/Delete
   		Tracking Mode
   		Select Track
   	Settings	General Settings
   		Light Bar Settings
   		AutoTrac™ Settings
   		Curve Track Setting
   		Shift Track Settings
   		Row Sense Settings
   	Shift Track
   	Field	New
   		Client
   		Farm
   		Field
   	Boundaries
   	General Settings	Map Settings
   		Activations
   	Swath Control Pro	On/Off
   		SCP Settings
   Performance Monitor	Reset Counters
   	Settings
   Transmission	Efficiency Manager™
   	Maximum Wheel Speed
   	Standard Settings
   	Advanced Settings
   	User Mode

   Main Component	Sub-Component	Specific Component
   Lights
   Engine	FieldCruise On/Off
   	FieldCruise Settings
   	Exhaust Filter Cleaning
   PTO	PTO Advanced Settings
   	Engagement Rates
   	Remote Control
   	Field Cruise Settings
   iTEC	Change Implements
   	iTEC Settings
   Rear Hitch	Load Depth
   	Upper Limit
   	Drop Rate
   	Raise Rate
   	Slip Sensitivity
   SCV	SCV	SCV I
   		SCV II
   		SCV III
   		SCV IV
   		SCV V
   		SCV VI
   	Single Lever Control
   	Auto Load
   Display	Language/Units/Dates
   	Multiple Displays
   	Brightness and Volume
   Layout Manager

---
