Connecting ISO Implements and Multiple ISO Displays

CAUTION:

RXA0098156-UN-07NOV08

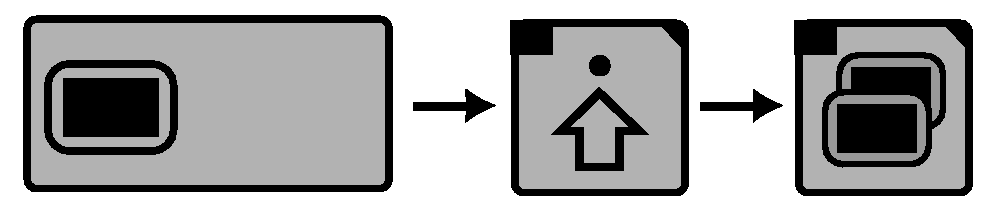

RXA0103918-UN-02AUG10

Display → Advanced Settings → Multiple Display

Improper operation can cause unintended implement movement.

To avoid death or serious injury to a bystander, understand how this display operates the functions of the implement.

Read and understand the implement Operator Manual.

This message occurs when the system detects an ISOBUS implement. For more information, READ OPERATOR MANUALS FOR ISOBUS IMPLEMENTS.

In some cases it may be necessary to operate with more than one ISO terminal display. In such cases configure CommandCenter™ to recognize and operate in conjunction with a ISO second display.

General Recommendations:

• Ensure ignition is in OFF position when connecting auxiliary ISO displays or ISO implements.
• Restore Factory Default Settings before disconnecting external ISO display.

Guide For Display Settings for Multiple Display Pages
GreenStar™ applications	GreenStar applications cannot operate on simultaneously on two displays.
Original GreenStar	Original GREENSTAR monitor cannot operate simultaneously on two displays. NOTE: All Original GreenStar monitor functionality can only be viewed via Original GreenStar display, if equipped.
Implement Bus Virtual Terminal	Implement Bus Virtual Terminal can be active on two ISO displays. Enable Implement Bus to view an ISO implement on the CommandCenter. Disable Implement Bus to view an ISO implement on alternate ISO display. NOTE: Functional instance box (I) may change depending on ISO implement. Consult ISO implement manual.
Tractor Bus Virtual Terminal	Tractor Bus Virtual Terminal cannot be disabled. No adjustment required.

1. Select Menu button.

2. Select Display.

3. Select Advanced Settings softkey.

4. Select Multiple Display.

   Factory Default Settings for Display—Settings—Multiple Displays

   Changing these settings may cause devices to stop working.

   Display Mode: ..............Multiple

   GreenStar: ..............Off

   Original GreenStar Monitor: ..............Off

   Implement Bus ..............Off

   Functional Instance

   GreenStar: .............. 1

   Original GreenStar Monitor:.............. 1

   Implement Bus: ..............1

   Vehicle Bus:.............. 1

5. Display—Settings—Multiple Display page is displayed, select "Change Settings" button in lower left hand corner.

   NOTE: When Save Settings and Restart Display button is selected, display restarts with correct settings

6. Configure page as desired, then select “Save Settings and Restart Display” box in lower right corner of page.
