Observing Drawbar Load Limitations
IMPORTANT:

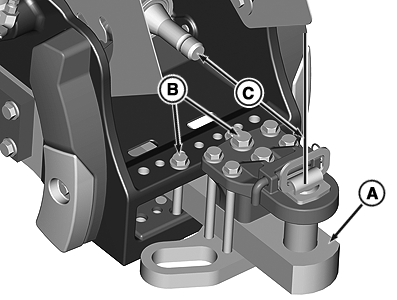

RXA0109437-UN-21SEP10
A - Drawbar
B - Bolts
C - PTO Shaft to Drawbar Pin Hole
Certain heavy equipment can place excessive strain on drawbar (A). Strain is greatly increased by speed and rough ground. Maximum static vertical load on drawbar should not be exceeded. See Drawbar Load Limits table.Drive slowly when moving heavy draft loads.
Tighten drawbar locking bolts (B) with shims to 435 N˙m (322 lb-ft) and drive slowly, if heavier loads are expected.
|
Drawbar Load Limits Based on Drawbar Position, and Length |
||||
|
Tractor Model and Drawbar Category |
Drawbar Category and Support |
End of PTO Shaft to Drawbar Pin Hole Distance (C) |
Drawbar Position |
Maximum Vertical Drawbar Load |
|
9360R, 9410R, and 9460R |
Cat. 4 Drawbar, and Standard or HD Support |
508 mm (20 in.) |
Rear Hole in Frame (Long Position) |
2268 kg (5000 lb) |
|
9360R, 9410R, and 9460R |
Cat. 4 Drawbar, and Standard or HD Support |
358 mm (14 in.) |
Front Hole in Frame (Short Position) |
2470 kg (5450 lb) |
|
9360R, 9410R, and 9460R |
Cat. 4 Drawbar, HD Support, and Cat. 4 Drawbar Reinforcement Kit |
508 mm (20 in.) |
Rear Hole in Frame (Long Position) |
4082 kg (9000 lb) |
|
9360R, 9410R, and 9460R |
Cat. 4 Drawbar, HD Support, and Cat. 4 Drawbar Reinforcement Kit |
358 mm (14 in.) |
Front Hole in Frame (Short Position) |
4900 kg (11000 lb) |
|
9510R and 9560R |
Cat. 5 Drawbar and HD Support |
508 mm (20 in.) |
Rear Hole in Frame (Long Position) |
4082 kg (9000 lb) |
|
9510R and 9560R |
Cat. 5 Drawbar and HD Support |
358 mm (14 in.) |
Front Hole in Frame (Short Position) |
5440 kg (12000 lb) |
|
Category 4 = 51 mm (2 in.) Diameter Pin |
||||
|
Category 5 = 70 mm (2.75 in.) Diameter Pin |
||||
|
