Category 4 Heavy Duty Drawbar Reinforcement Kit Load Limitations (If Equipped)

IMPORTANT:

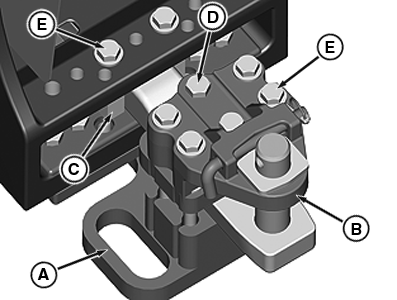

RXA0111487-UN-27OCT10

Heavy Duty Drawbar Support

A - Drawbar Brace

B - Hammerstrap

C - Spacer Blocks

D - Cap Screws, M22

E - Cap Screws, M20

Do not exceed maximum static vertical load for a given drawbar length/position, as indicated in the following table.

Heavy duty drawbar support must be used when maximum static vertical load exceeds 2043 kg (4500 lb).

Special cap screws are used on drawbars. See your John Deere dealer if cap screws must be replaced.

IMPORTANT: Heavy Duty Drawbar Kit must be installed when maximum static vertical load on the category 4 drawbar exceed 2470 kg (5450 lbs) in the short position or 2268 kg (5000 lbs) in the long position.

The kit is available from your John Deere dealer.

Attach drawbar brace (A), hammerstrap (B) and spacer block (C) using cap screws (D) and (E).

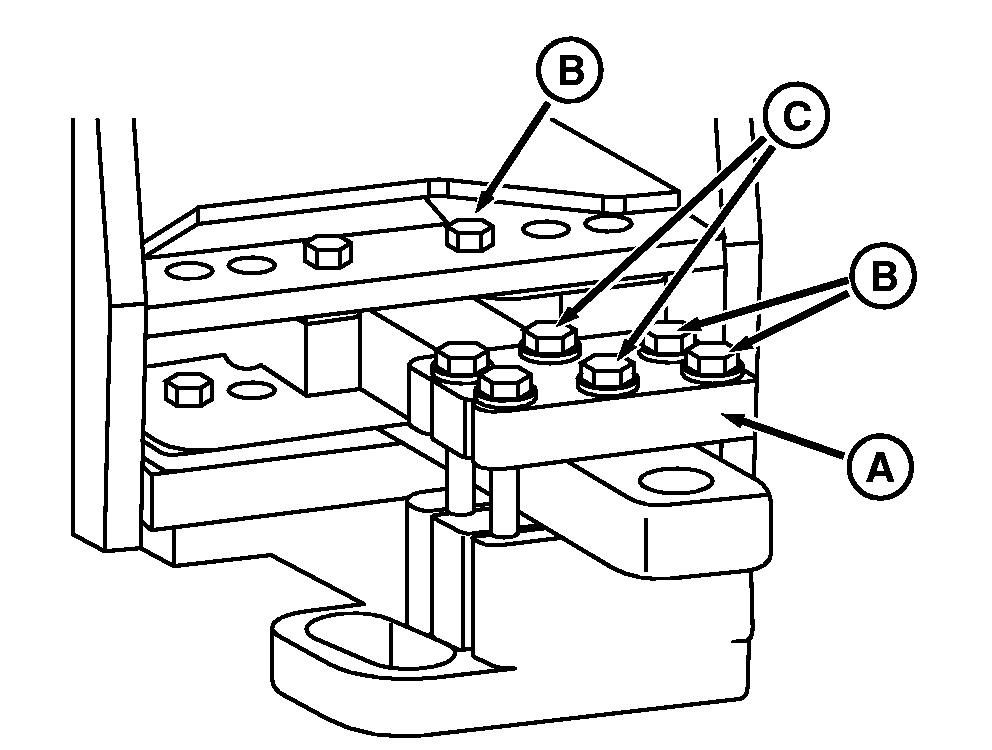

RXA0109552-UN-13AUG10

Heavy Duty Hammerstrap

A - Plate

B - Cap Screws, M22

C - Cap Screws, M20

IMPORTANT: Clamp plate must be installed to retain the category 4 drawbar brace when hammerstrap is not used.

Install clamp pate (A) using cap screw (B) and (C).

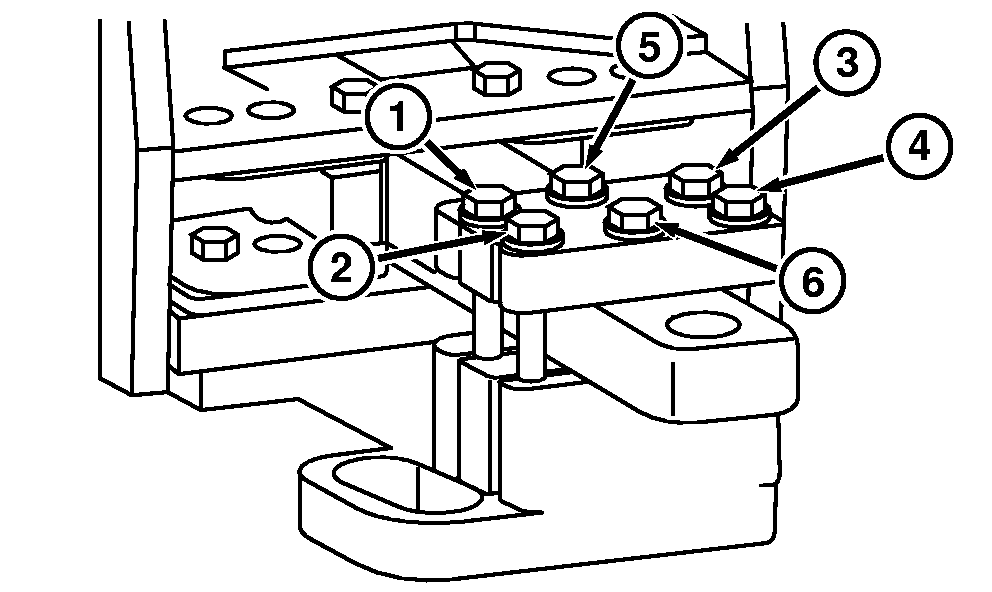

RXA0073937-UN-11MAR04

A - Torque number 1
B - Torque number 4
C - Torque number 2
D - Torque number 3
E - Torque number 1
F - Torque number 4
G - Torque number 2
H - Torque number 3
I - Torque number 5
J - Torque number 6
K - Torque number 5
L - Torque number 6

Item	Measurement	Specification
Torque Specifications
Cap Screws 1, 2 3 and 4.	Torque	610 N˙m 450 lb-ft
Cap Screws 5 and 6	Torque	750 N˙m 550 lb-ft
