Category 5 Heavy Duty Drawbar Support Load Limitations (If Equipped)
IMPORTANT:
RXA0111486-UN-27OCT10

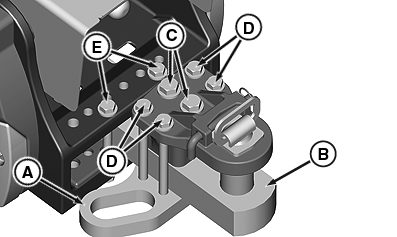

A - Drawbar Brace
B - Drawbar
C - Cap Screws, M22
D - Cap Screws, M20
E - Cap Screws, M20
Heavy duty drawbar support must be used when maximum static vertical load exceeds 2043 kg (4500 lb).
|
Maximum Static Vertical Drawbar Load |
|
|---|---|
|
Short Drawbar Position |
5440 kg (12,000 lb) |
|
Long Drawbar Position |
4082 kg (9,000 lb) |
Attach drawbar brace (A) and hammerstrap to drawbar (B) using M22 cap screws (C) and M20 cap screws (D) and (E).
| Item | Measurement | Specification |
| Torque Specifications | ||
| M20 Cap Screws | Torque | 610 N˙m (450 lb-ft) |
| M22 Cap Screws | Torque | 750 N˙m (553 lb-ft) |
IMPORTANT: Drive slowly when moving heavy draft loads.
|
