Selecting Drawbar Position

RXA0111472-UN-26OCT10

RXA0051685-UN-12FEB01

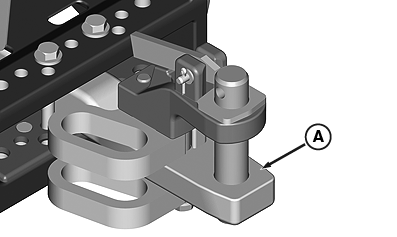

A - Drawbar

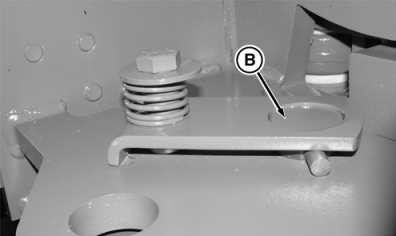

B - Drawbar Pin

IMPORTANT: Drawbar must be positioned, as instructed in Attaching PTO Driven Implement in this section, for PTO-driven implement.

Drawbar (A) length can be extended:

1. Loosen drawbar locking bolts.

2. Remove front drawbar pin (B).

3. Slide drawbar to desired position.

4. Install front drawbar pin.

5. Tighten drawbar locking bolts.

   Item	Measurement	Specification
   Drawbar Locking Bolts
   Bolt	Torque	435 N˙m (322 lb-ft)
