Installing Clevis Assembly—Category 4 Drawbar

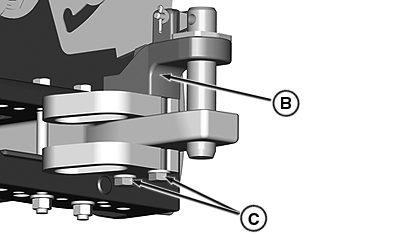

RXA0111475-UN-28OCT10
B - Clevis Assembly
C - Cap Screws
Clevis assembly (B) must be attached only to the top of the drawbar. Tighten two cap screws (C).
| Item | Measurement | Specification |
| Clevis Cap Screws | ||
| Cap Screw | Torque | 750 N˙m (553 lb-ft) |
|
RW29387,0000788-19-20101028 |
