Using Clevis Assembly—Category 5 Drawbar

RXA0111485-UN-27OCT10

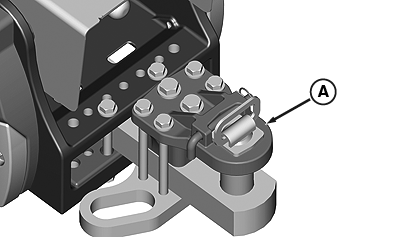

A - Clevis Assembly

IMPORTANT: Before using PTO shaft, or whenever it might cause interference, remove clevis assembly.

Clevis assembly (A) must be attached only to the top of the drawbar.

If towed implement also has a clevis assembly, insert pin only through tractor drawbar. DO NOT insert pin through all four members.
