Using PTO Master Shield (If Equipped)

CAUTION:

RXA0111477
RXA0111477-UN-27OCT10

RXA0111478
RXA0111478-UN-27OCT10

RXA0111479
RXA0111479-UN-27OCT10

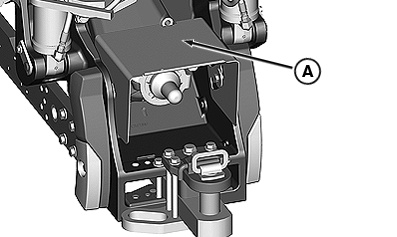

A - PTO Shield

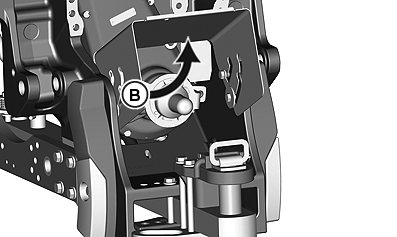

B - Raised Position

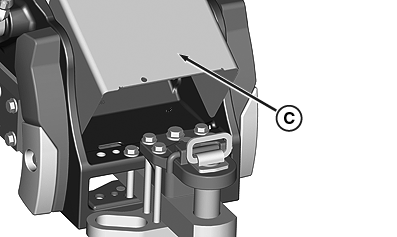

C - Lowered Position

Avoid possible injury. Tractor master shield (A) should be in place at all times except for special applications as directed in the implement operator's manual. Do not use shield as a step.

Master shield can be tipped up (B) to provide clearance while connecting PTO shaft. DO NOT operate PTO with shield in the fully raised position.

Master shield (C) can be lowered to improve drawbar visibility, when drawbar is being used without PTO.

RW29387,000078E-19-20121130
