Installing QUIK-TATCH Frame Weights

RW55346A-UN-08MAR99

RW55347A-UN-08MAR99

RW56137-UN-26AUG96

Rear Weights Over Differential Case

A - Center

B - Retaining Bolts

NOTE: Rear frame weights should not be installed on tractors pulling non dolly wheel scrapers.

Up to 20 QUIK-TATCH weights can be installed on rear frame of tractor.

When required, install QUIK-TATCH weights, balanced on each side of center (A). The first two weights must be installed as a pair.

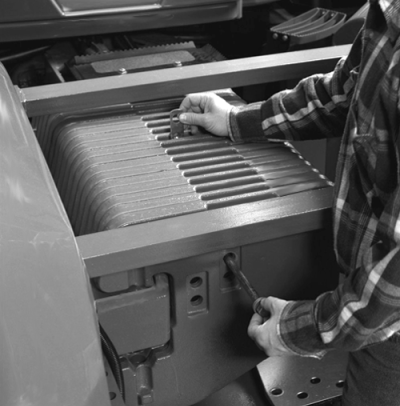

To hold six weights or fewer in position, insert retaining bolts (B) through holes and secure with a nut. Tighten to 230 N˙m (170 lb-ft).

When eight or more weights are installed, insert retainers between weights, one with threaded hole upward and the other with threaded hole downward. Tighten bolts to 230 N˙m (170 lb-ft).
