Using Correct Tire Combinations

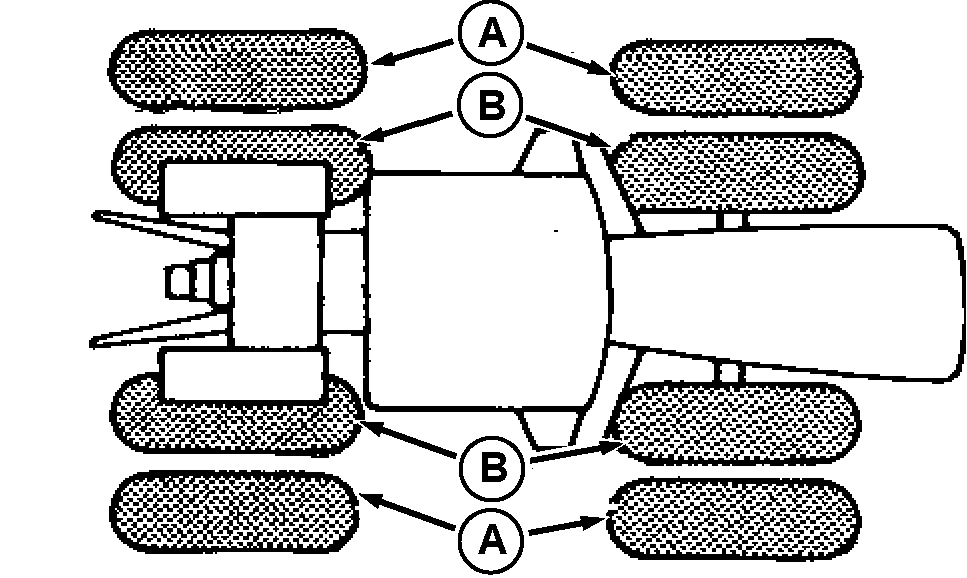

RW4590A-UN-08MAR99

A - Outside Dual

B - Inside Dual

CAUTION: Prevent possible injury. High-speed transport with outer duals removed can cause loss of steering control and reduce vehicle stability. Reduce speed immediately if loss of steering control occurs.

If outer duals must be removed, adjust wheels to wider tread and travel at slow speeds.

Do not operate with single wheels except if equipped with 800/70R38 in. tires.

IMPORTANT: Avoid excessive drive train wear or a possible reduction in performance. Do not mix worn and new tires, bias and radial, or tires of different diameters. Do not use R2 tires in combination with R1.

When radial-ply tires are used as inner dual (B), outer dual (A) may be bias-ply tires.

Any other mixing of radial-ply and bias-ply tires is not recommended.
