Triple Wheels (Heavy Duty Wheel Hubs)

RXA0073454-UN-13FEB04

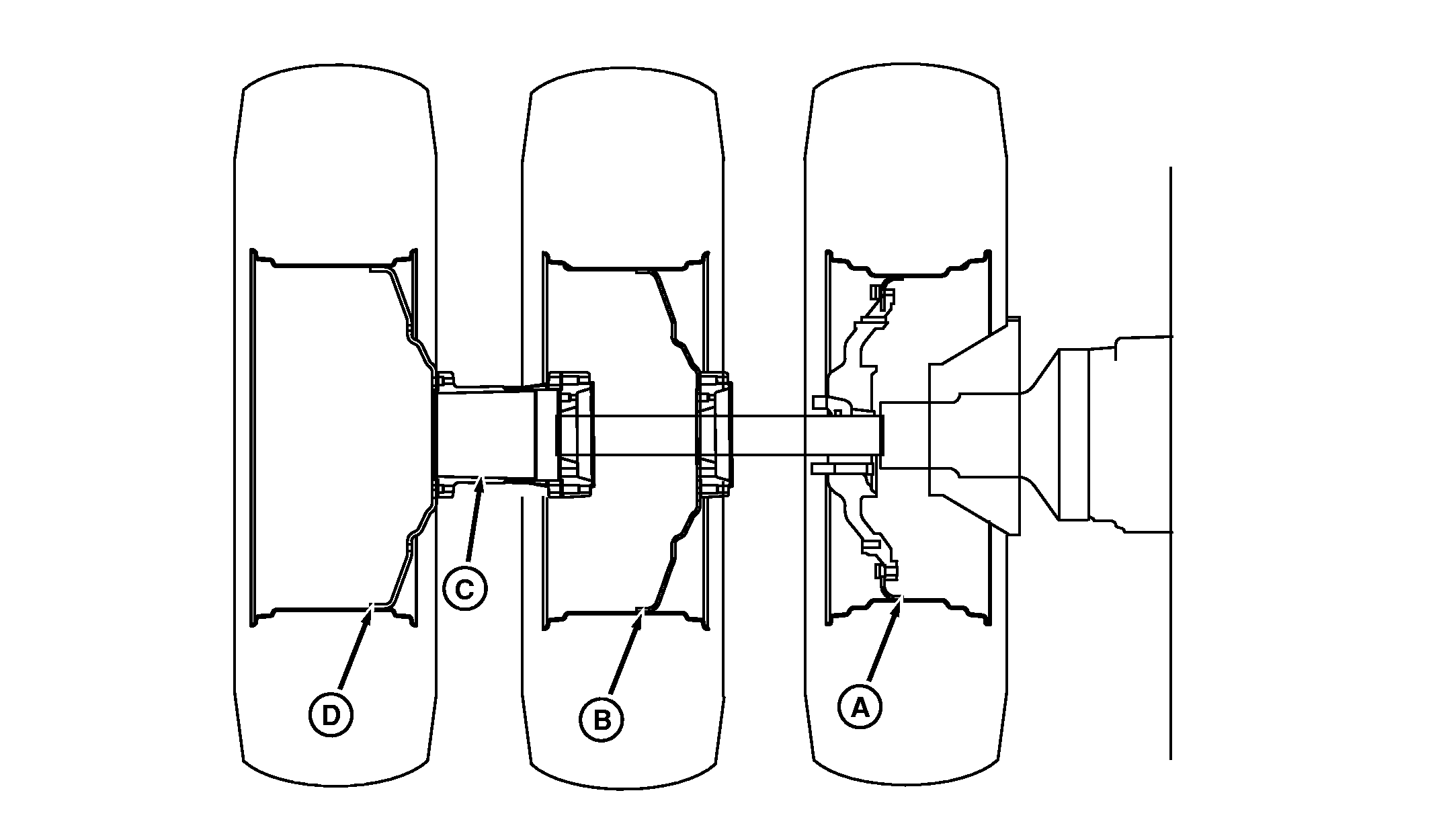

Triple Wheels (Heavy Duty Wheel Hubs)

A - Inner Wheel

B - Dual Wheel

C - Hub Extension

D - Outer Wheel

See following pages for instructions on installing wheel hardware and torque specifications.
