Using Steering Stops

RXA0112248-UN-10DEC10

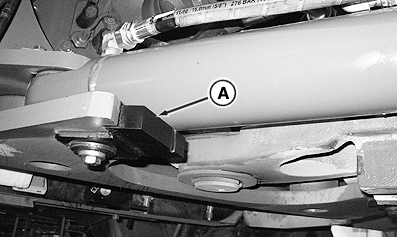

A - Steering Stop

NOTE: Steering Stops of 3°, 5°, and 10° are available through your John Deere Dealer. The correct steering stops are installed at the factory with tire option ordered.

IMPORTANT: Steering stops (A) must be installed if tractor is equipped with dual tires when outer tire treads are greater than 3343 mm (131.6 in.) or if equipped with triple tires.

Check clearance by turning steering wheel to full left and full right positions after installing steering stops and adjusting wheel treads.

Tighten steering stop retaining cap screw to 90 N˙m (66 lb-ft).

Tires	Steering Stop	Tread Spacing Range
		Inner Tire	Outer Tire	Triple Tire
18.4R46, 480/80R46 Duals	3°	1524-1910 mm (60-75 in.)	2969-3348 mm (117-131.8 in.)
18.4R46, 480/80R46 Triples	10°	1500 mm (59 in.)	2752 mm (108.4 in.)	4106 mm (161.6 in.)
480/80R50 Duals	10°	1524-1910 mm (60-75 in.)	2969-3348 mm (117-131.8 in.)
480/80R50 Triples	10°	1500 mm (59 in.)	2752 mm (108.4 in.)	4106 mm (161.6 in.)
20.8R42, 520/85R42 Duals	3°	1600-2062 mm (63-81 in.)	2985-2453 mm (117.6-136 in.)
20.8R42, 520/85R42 Triples	10°	1600 mm (63 in.)	2987 mm (117.6 in.)	4374 mm (172 in.)
520/85R46 Duals	10°	1600-2062 mm (63-81 in.)	2985-2453 mm (117.6-136 in.)
520/85R46 Triples	10°	1600 mm (63 in.)	2987 mm (117.6 in.)	4374 mm (172 in.)
620/70R42 Duals	5°	1689-2062 mm (66.5-81 in.)	3241-3614 mm (127.6-142 in.)
620/70R46 Duals	10°	1689-2062 mm (66.5-81 in.)	3241-3614 mm (127.6-142 in.)
650/85R38 Duals	10°	1722-1966 mm (67.8-77.4 in.)	3372-3648 mm (132.8-143.6 in.)
710/70R38 Duals	5°	1783-1935 mm (70-76 in.)	3472-3625 mm (137-143 in.)
710/70R42 Duals	10°	1783-1935 mm (70-76 in.)	3472-3625 mm (137-143 in.)
800/70R38 Duals	10°	1876-2188 mm (74-86 in.)	3763-4075 mm (148-160 in)
