Using Sway Blocks

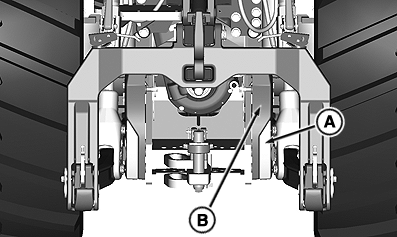

RXA0119600-UN-09AUG11

A - Sway Blocks

B - Tapered Side

Install sway blocks (A) with thick end toward frame, to minimize side sway of hitch.

Tighten attaching bolts to 230 N˙m (170 lb-ft).

IMPORTANT: Prevent interference of draft links with tires. Be sure distance between tires is at least 1168 mm (46 in.) with equal distance from center line of tractor. If distance between tires must be less than 1168 mm (46 in.), sway should be limited. (See OBSERVING TREAD WIDTH LIMITATIONS in Wheels, Tires, and Treads Section.)

Move each sway block to opposite side of tractor to allow side sway when hitch is lowered. Install sway blocks with tapered sides (B) outward from frame.
