Attaching Implement to Quick Coupler

RXA0119601
RXA0119601-UN-09AUG11

Coupler Latch Handles Up

RXA0109435
RXA0109435-UN-16AUG10

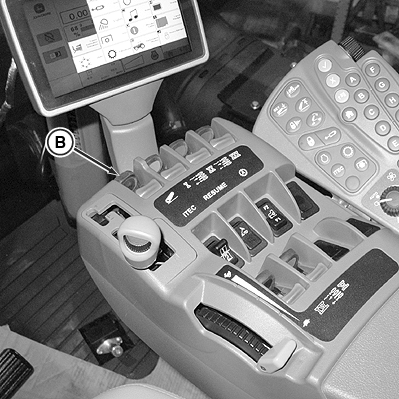

Hitch Switch

RXA0119602
RXA0119602-UN-09AUG11

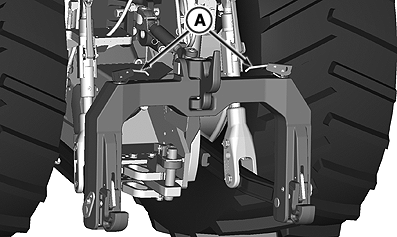

Coupler Latch Handles Down

A - Coupler Latch Handles

B - Hitch Control Switch

CAUTION: To avoid bodily injury or machine damage:

  • Put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation whenever an implement is attached.
  • Make sure implement is correctly attached. Incorrect attachment can allow implement to be pulled over the tractor wheel and onto the operator station.
  • Do not stand between tractor and implement.

  1. Pull up on coupler latch handles (A).

  2. Lower hitch switch (B) until quick coupler hooks are lower than implement hitch pins.

  3. Back up tractor to implement.

  4. Raise hitch enough to engage implement pins in hooks.

  5. Push coupler latch handles (A) down to lock implement to quick coupler.

  6. Connect hydraulic hoses and electrical connections.

  7. Slowly pull hitch control lever to raise implement. Lower implement to ground and adjust upper height limit control if necessary.

RW29387,00007D8-19-20110922
