Adjusting Implement Level

1.

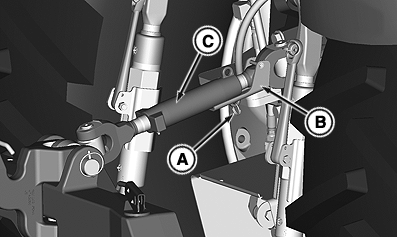

   RXA0119619-UN-09AUG11

   A - Lock Ring

   B - Handle

   C - Center Link Body

   Adjust center link to level implement front-to-rear.

---




2. Remove lock ring (A). Disengage handle (B) and rotate center portion (C) to lengthen or shorten center link.

   Item	Measurement	Specification
   Center Link
   Adjustment	Length	747—868 mm (29.5—34.3 in.)

3. Push handle down and install lock ring to hold center link in position. Measure between centers of attaching pins.

4.

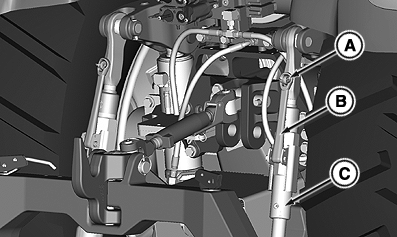

   RXA0119620-UN-09AUG11

   A - Sleeve

   B - Lift Link Lock

   C - Lift Link

   Adjust either lift link to level implement side-to-side. Remove lock ring (A) to release lift link sleeve handle (B). Position sleeve on lift link hex to rotate center portion (C) with handle.

---




5. Measure between centers of lift link attaching pins.

   Item	Measurement	Specification
   Lift Link
   Adjustment	Length	1030—1150 mm (40.5—45.3 in.)
