Lateral Float

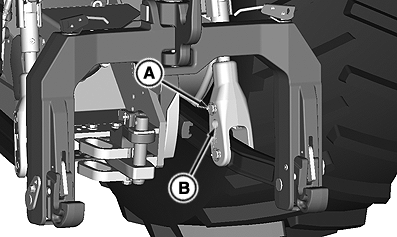

RXA0119621-UN-09AUG11

A - Upper Holes-Rigid Position

B - Lower Holes-Float Position

Placing lateral float pins in upper holes (A) to hold implement rigid.

Put lateral float pins in lower holes (B) for float position. The draft links raise slightly as implement follows ground surface.
