Light Identification

RXA0107971
RXA0107971-UN-23NOV10

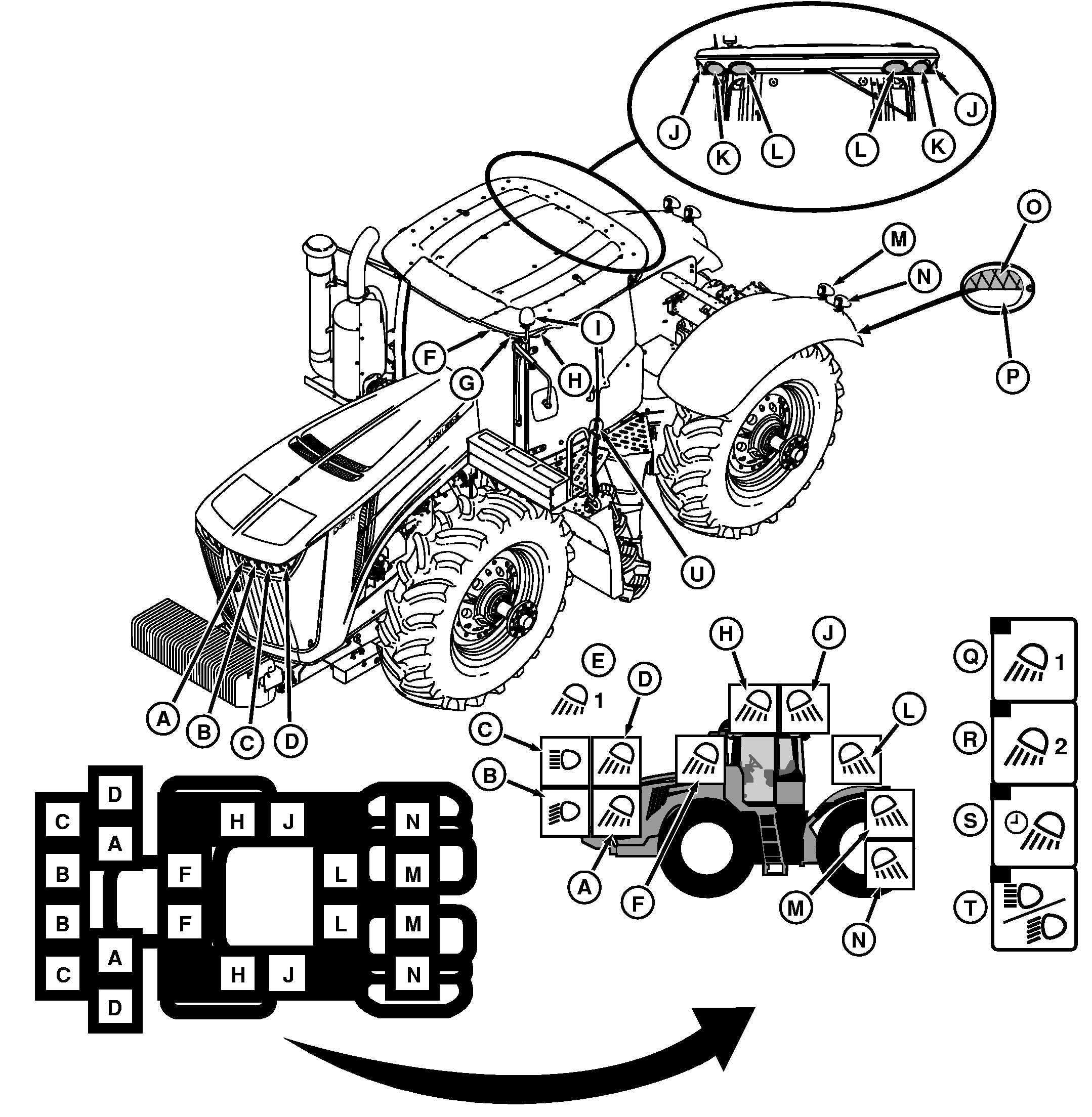

A - Work Light, Center Hood (Halogen or HID-Xenon) 1

B - Road Light, Low Beam

C - Road Light, High Beam

D - Work Light, Outer Hood (Halogen or HID-Xenon) 1

E - Indicator, Flood Light Position

F - Work Light, Front Inner Roof 2

G - Amber Warning Light, Front Roof Corner

H - Work Light, Front Side Roof

I - Rotary Beacon Light 2

J - Work Light, Rear Side Roof

K - Amber Warning Light, Rear Roof Corner

L - Work Light, Rear Inner Roof

M - Field Lights, Inside Rear Fender (Halogen)

N - Field Lights, Outside Rear Fender (Halogen or HID-Xenon) 1

O - Turn Signal Light (Amber)

P - Rear Brake Light (Red)

Q - Field Lights, 1 Soft Key

R - Field Lights, 2 Soft Key

S - Egress Lighting Soft Key

T - High/Low Beam

U - Extremity Light

All lights are same on both sides of tractor, except rotary beacon (I) in Deluxe and Premium lighting packages and grill mounted center work lights (A) in Premium lighting package. In Premium lighting package, right grill mounted center work light is HID-xenon.

1 Light type differs, depending on lighting package installed.
2 Available only in Deluxe and Premium lighting packages.
