Configuring Selective Control Valves On CommandCenter™ - Independent Mode

RXA0117610
RXA0117610-UN-10JUN11

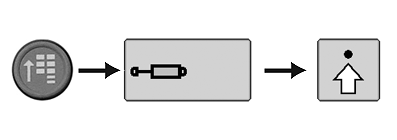

CommandARM Menu Button → SCV Softkey → Advanced Settings Softkey

RXA0117124
RXA0117124-UN-18MAY11

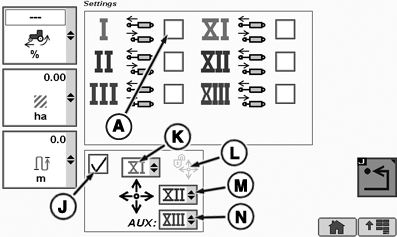

SCV Advanced Settings Page

RXA0107019
RXA0107019-UN-04AUG10

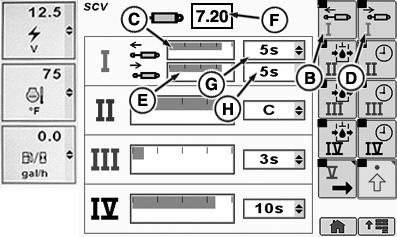

SCV Homepage

RXA0101978
RXA0101978-UN-08APR09

A - Independent Mode Check Box

B - Extend Softkey

C - Extend Flow Bar Graph

D - Retract Flow Softkey

E - Retract Flow Bar Graph

F - Detent Flow Box

G - Extend Detent Time Drop Down Box

H - Retract Detent time Drop Down Box

I - Detent Time Selections

J - Single Lever Control Check Box

K - Fore/Aft SCV Drop Down Box

L - Lock (Single Lever Control)

M - Side to Side SCV Drop Down Box

N - Aux SCV Drop Down Box

  1. Select Menu button.

  2. Select SCV softkey.

  3. Select Advanced Settings softkey.

  4. At advanced settings page, place check in independent mode check box (A).

  5. SCV I now has unique flow and detent times on SCV homepage. They are adjusted by selecting extend softkey (B), highlighting extend flow bar graph (C). Selecting retract softkey (D) highlights retract flow bar graph (E).

    NOTE: Bar graph depicts amount of flow. Flow is displayed in increments of 0.04 beginning at 0.04 through 10 in detent flow box (F).

  6. Rotate thumb wheel forward or rearward while watching specified bar graph indicator move right or left respectively. Value in detent flow box increases or decreases as thumb wheel is rotated.

    NOTE: Detent time drop down box (G for extend or H for retract) will display amount of time in 1 second increments up to 10, then increments of every 2 seconds; 12, 14, 16, 18, up to 20, then 25, 30, 40, 50, 60, 90, 120, 180 seconds or C for continuous flow.

  7. Using thumb wheel, navigate to drop down box (G or H), then press Confirm button.

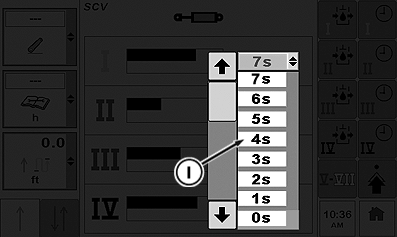

  8. When drop-down box opens, rotate thumb wheel to detent time selections (I) and press Confirm button.

  9. Desired detent time now appears in respective drop-down box (G or H).

Advanced Settings Page—Single Lever Control

NOTE: When activating/deactivating single lever control (J) assigned SCVs detent times are zeroed.

Checking single lever control check box (J) gives control of SCV to single lever control. When unchecked, SCV is controlled by SCV lever. Fore/Aft (K), Side to Side (M), and Aux SCV (N) drop-down boxes allow any SCV I through SCV V to be selected. Lock (L) indicates lock/unlock state of single lever control.

RX32825,0000418-19-20120626
