Delayed Egress Lighting (If Equipped)

RXA0098156-UN-07NOV08

CommandARM Menu Button

RXA0119867-UN-17AUG11

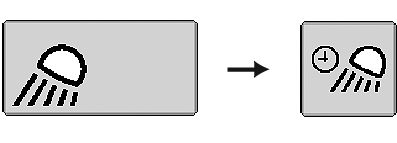

Lights Softkey → Delayed Egress Lighting Softkey

RXA0130163-UN-14DEC12

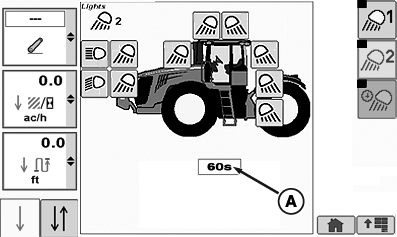

Egress Lighting Page

RXA0130164-UN-14DEC12

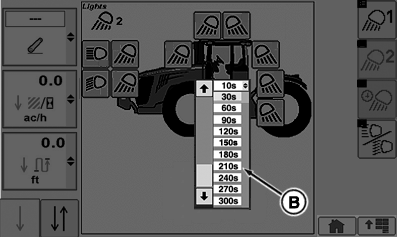

Pull Down Menu

A - Egress Delay Drop Down Box

B - Egress Delay Time Selection

Programming delayed egress lighting allows operator to specify how long lights will remain on after key switch is turned OFF.

NOTE: Egress lighting will not activate if light switch is turned from “Field” or “Road” position to OFF - or if high/low beam selector switch setting is changed - after key switch is turned to OFF.

Field Egress Lighting: Operator selects desired lights on Lighting page under Egress Lighting. Lights will remain on for time selected if:

• Light switch has been in “Field” position for at least 10 seconds with key switch ON and...
• Light switch has been turned OFF with key switch ON and...
• Key switch has been turned OFF within 5 minutes of light switch being turned OFF.

Road Egress Lighting: Only low beam road lights will remain on. Lights will remain on for time selected on Lighting page under Egress Lighting if:

• Light switch has been in “Road” position for at least 10 seconds with key switch ON and...
• Light switch has been turned OFF with key switch ON and...
• Key switch has been turned OFF within 5 minutes of light switch being turned OFF.

1. At CommandCenter™ main menu, select lights icon.
2. Select Egress soft key.
3. Select Egress Delay soft key.
4. Selecting Egress drop down box (A), shown set at 60 seconds.
5. When drop-down box options appear, select desired egress delay time (B) before lights will automatically turn off.

   This could be from 10—300 seconds in 30 second increments. When set at “0” seconds, egress lighting is disabled.

   When tractor is turned off, the last lighting selection (Road or Field) lights will be activated for a time span equal to the egress delay time selection.
