Three Camera Video Harness with Ethernet Cable (If Equipped)

RXA0127459-UN-07AUG12

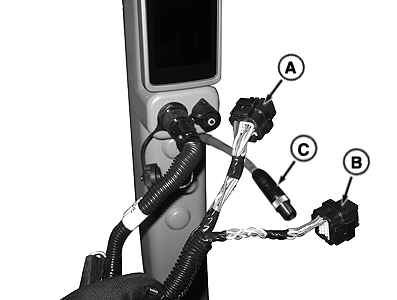

Integrated Video Harness with Ethernet Cable

A - Base Display Connector

B - Video Signal Connector

C - Ethernet Cable

The GreenStar™ (GS3) 2630 Display can support three video inputs for those who want additional visibility when operating the tractor. Attach base display connector (A) and video signal connector (B) to the back of the 2630 Display.

NOTE: This is in addition to the video input for the CommandCenter™ Touchscreen Display .

If equipped, the Ethernet cable (C) with GS3 2630 Display allows remote access to dealer and customer, with their approval, to view exactly what the operator is viewing on the GS3 2630 Display.
