Changing MFWD Or Independent Link Suspension Wheel Hub Oil

1. Park tractor on level ground.


   RW26336-UN-25JUN99

---

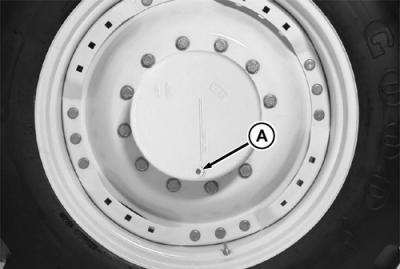

2. Maneuver tractor forward or backward until drain/fill plug (A) is at bottom of hub.

3. Remove drain/fill plug and drain oil.

4. When oil has completely drained, maneuver tractor so that words OIL LEVEL cast into wheel hub are horizontal.

5. Fill MFWD wheel hub with John Deere™ GL-5 Gear Lubricant oil as specified in Gear Oil in Fuel, Lubricants and Coolant section of this Operator’s Manual through drain/fill hole until oil is even with bottom of hole.

   Item	Measurement	Specification
   MFWD/Independent Link Suspension Wheel Hub	Capacity	3.8 L (4 qt.)

6. Install and tighten drain/fill plug.

7. Repeat procedure with other wheel hub.
