Adjust Rear Hitch Upper Limit

1. Select rear hitch upper limit module.


   RXA0133710-UN-16JUL13

   Rear Hitch Shortcut Button on Navigation Bar


   RXA0143173-UN-01JUL14

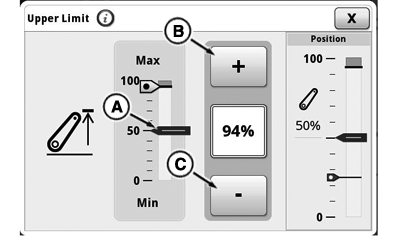

   Rear Hitch Upper Limit Module


   RXA0143175-UN-01JUL14

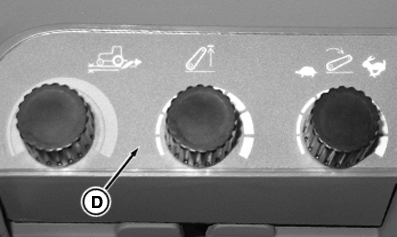

   Rear Hitch Upper Limit Dial

   A - Upper Limit Indicator

   B - Increase Value Button

   C - Decrease Value Button

   D - Rear Hitch Upper Limit Dial

---




2. To adjust rear hitch upper limit, use increase value button (B) or decrease value button (C).

NOTE: Changes to upper limit are immediate.

NOTE: Rear hitch upper limit can be adjusted using rear hitch upper limit dial (D).

NOTE: When the upper limit is the same as the hitch position, hitch will follow upper limit.
