Adjust ActiveSeat™ (If Equipped)

RXA0143343-UN-08JUL14

ActiveSeat™ has ride zone protection (RZP), a built-in buffer at high and low end of vertical seat travel, resulting in a much smoother ride. To receive maximum benefit from ActiveSeat™ RZP system, adjust seat to operator’s height and weight prior to operating tractor. After adjustment, seat automatically moves into protected zone when operator adjusts seat height position to a level at or near vertical seat travel limits.

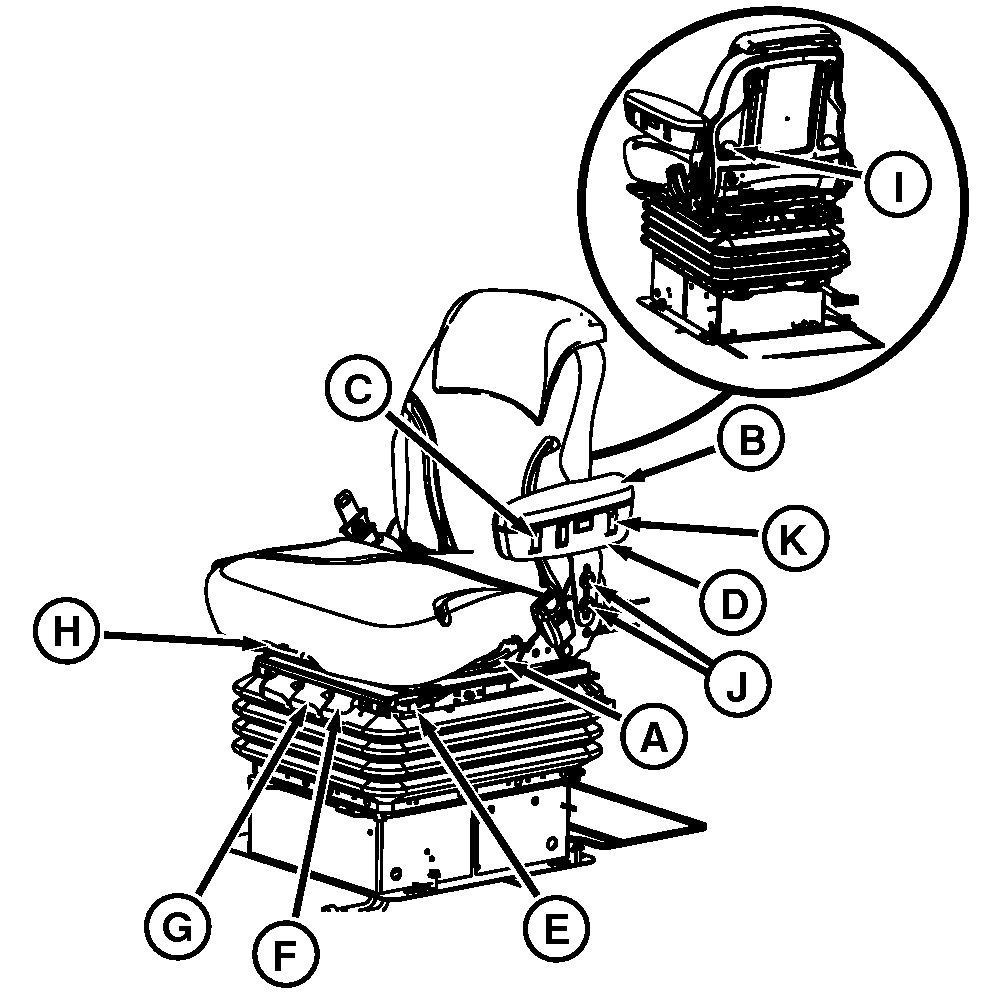

A—Back Tilt Handle - Allows seat back to tilt.

B—Flip Up Armrest - Can be flipped up out of the way.

C—Height Adjustment Switch - Turn key to “ON”. Press lower portion of switch to lower seat or press upper portion of switch to raise seat.

D—Armrest Tilt Adjustment Knob - Turn knob to adjust armrest angle.

E—Fore/Aft Seat Adjustment Handle - Lift up handle, move seat forward or backward, press handle back down to lock into place.

F—Fore/Aft Isolation Handle - Adjust lever to back setting, lock into place with locking lever. Seat will absorb shock impacts while tractor is in motion. Seat won’t move farther that 25 mm in any direction.

G—Lateral Isolation Handle - Push down on handle to unlock lateral seat suspension. Pull up on handle to lock seat in position.

H—Seat Swivel Handle - Lift on handle to allow seat to swivel. Push down on handle to lock seat in position.

I—Lumbar Adjustment Knob - Turn clockwise to add support to lower back. Turn counterclockwise to lessen resistance to lower back.

J—Armrest Adjustment Cap Screws - Loosen cap screws to slide arm rest up or down. Retighten cap screws.

K—Firmness Adjustment - provides three different levels of seat suspension performance. Press upper portion “+” of switch for the firmest ride or lower portion “-” for the softest ride.
