Check Engine Oil- Cummins™ Engine (15.0 L Engine)

RXA0141821-UN-02JUN14

RXA0141822-UN-02JUN14

Engine Oil Dipstick

RXA0141823-UN-02JUN14

Dipstick Cross Hatch

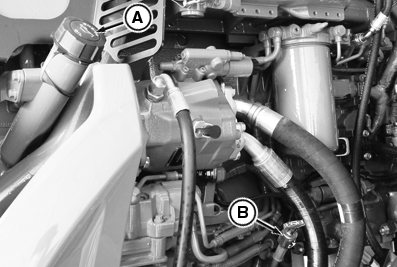

A - Fill Cab/Tube

B - Dipstick Location

C - Dipstick

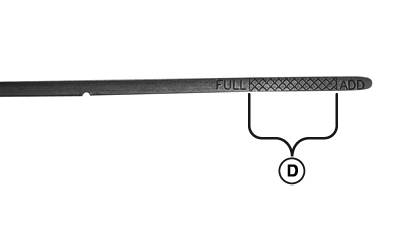

D - Cross-Hatched Area

NOTE: Dipstick is a different location (B) than the fill tube.

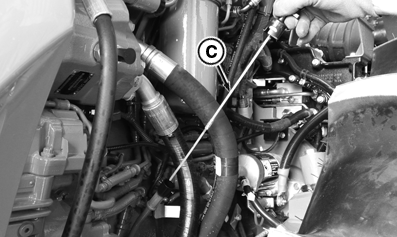

Remove dipstick (C) and check oil level with tractor on level ground before starting tractor. Oil level should be between the “ADD” and the top of the cross-hatch area on dipstick (D).

NOTE: Cross-hatched area (D) is considered FULL.

Engine oil level indicator is a dipstick with a "crosshatch" area with a "safe" zone. After tractor has been parked on level ground overnight is best time to check oil level. Anywhere in the dipstick crosshatch safe zone is considered full.

Remove fill cap (A) and add oil in to fill tube, if oil is required. (See DIESEL ENGINE OIL in the Fuels, Lubricants and Coolant Section.)

Do not operate engine with oil level below the “ADD” mark on dipstick.
