Disconnecting Hydraulic Hoses—Rear of Tractor

RXA0138808-UN-28JAN14

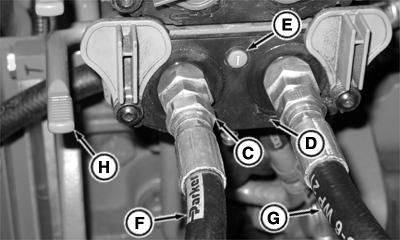

RXA0131030-UN-19FEB13

Couplers with High Pressure Relief Levers

A - Joystick - Joystick lock

B - CommandARM™ - SCV control lever Lock

C - Extend Icon

D - Retract Icon

E - SCV Identifier Number

F - Extend Hose

G - Retract Hose

H - SCV Hose Release Lever

CAUTION: Prevent possible personal injury. Lock out SCV controls before detaching implements to prevent implement movement.

1. Lower implement to ground before disconnecting hydraulic hoses.

2. Relieve hydraulic pressure in hoses by moving SCV control lever or joystick (If Equipped) to float position for a few seconds while engine is running.

3. Lock out SCV controls:

   • Joystick — Press Joystick lock (A).
   • CommandARM™ SCV — Press SCV control lever lock (B).



4. Push SCV hose release lever (H) down slightly to relieve any pressure buildup of trapped oil before removing hoses.

5. IMPORTANT: Forcing or jerking SCV hoses when disconnecting can damage hose ends and SCV couplers. If hoses cannot be removed easily, relieve pressure in hydraulic system by moving SCV lever to float position for a few seconds with engine running and using handle (H) to extract hoses.

   Pull hoses straight out from couplers.

6. Clean coupler area before closing dust cover.

7. Rotate dust covers down to cover couplers.
