CommandARM™ Joystick (If Equipped)

RXA0133920
RXA0133920-UN-11NOV13

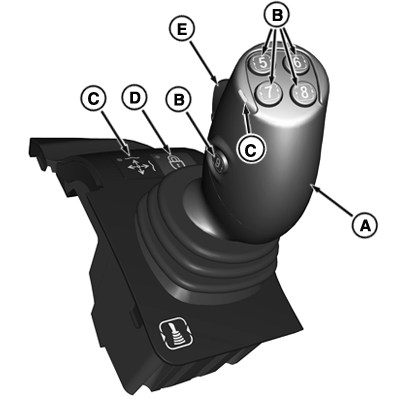

CommandARM™ Joystick

RXA0133735
RXA0133735-UN-17JUL13

Controls Setup Icon

A - Joystick (If Equipped)

B - Joystick Buttons

C - Joystick Activation Indicator Light

D - Joystick Lock

E - Joystick Rocker Switch

NOTE: Joystick is compatible with tractors equipped with only 6 or less SCVs.

Operating SCVs With Joystick

  • The Control Setup Icon appears around Controls that may be setup to control other functions. Review the Controls Setup page to verify the function of each control.
  • The axes of the joystick (A) operates combinations of programmed rear SCV(s) functions.
  • Operator can select transmission gear upshifts using (button 5) (B) and downshifts (button 7) (B) located on top of the lever.
  • Joystick activation indicator light (C) is ON when Joystick is active.
  • Joystick lock (D) is used to lock out electro-hydraulic functions for SCV(s) assigned to Joystick.
  • Rocker switch (E) operates combinations of programmed SCV(s) functions.
  • Push the joystick all the way forward and engage in detent to activate the float position. The joystick lever remains in the detent until it is pulled back.

Joystick Controls Custom Setup

RXA0133709
RXA0133709-UN-16JUL13

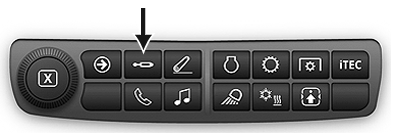

Controls Setup Shortcut Button on Navigation Bar

RXA0137972
RXA0137972-UN-04FEB14

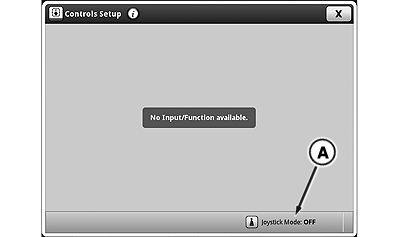

Controls Setup Page

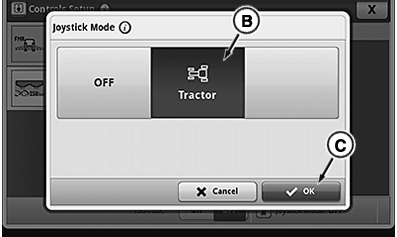

RXA0138010
RXA0138010-UN-18DEC13

Joystick Mode Page

A - Joystick Mode

B - Tractor Mode

C - OK Button

Press Controls Setup Shortcut Button on Navigation Bar:

  1. Press Joystick Mode (A).

Select Tractor Mode (B), then confirm using OK button (C).

In Tractor Mode, only SCVs I to VI, that are assigned to the joystick axis can be activated using the joystick.

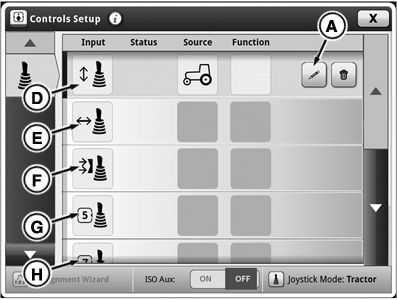

RXA0133929
RXA0133929-UN-20JAN14

Controls Setup Page

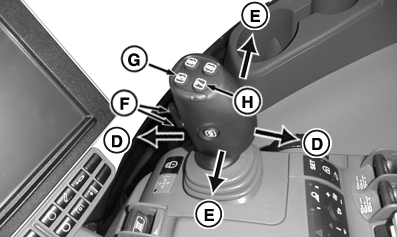

RXA0133467
RXA0133467-UN-20JAN14

Joystick

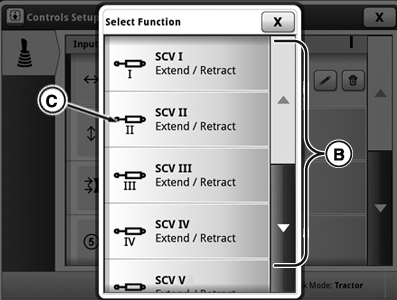

RXA0140234
RXA0140234-UN-16JUN14

Select Function Page

RXA0138492
RXA0138492-UN-16JUN14

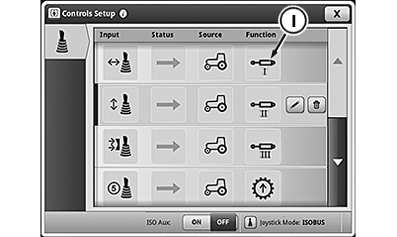

Controls Setup Page

A - Edit Function Button

B - Available Functions List

C - SCV II

D - Fore/Aft Axis

E - Left/Right Axis

F - Rocker Switch

G - Joystick Button 5

H - Joystick Button 7

I - Programmed Function

NOTE: Joystick buttons 5 (G) and 7 (H) are preassigned from the factory for up and downshifting transmission respectively. Joystick buttons 6 through 9 are not assignable at this time, function may become available for future use.

  1. Select desired Custom Assignments buttons (D through F) to change programmed function on joystick.

  2. Press edit function button (A).

  3. Select from list of functions (B) tractor is equipped with and press desired function to assign.

  4. Press desired function (C) from list.

New programmed function (I) appears in function column across from custom assignment button.


Removing Custom Assignments

RXA0138964
RXA0138964-UN-27MAY14

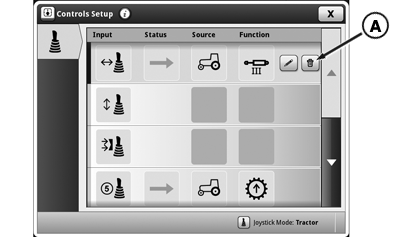

Remove Current Joystick Assignment

RXA0138963
RXA0138963-UN-27MAY14

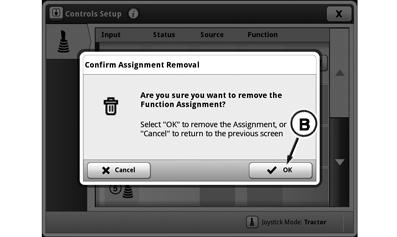

Confirm Joystick Assignment Removal

A - Joystick Assignment Delete Button

B - Confirm Assignment Removal OK Button

To change or remove the SCV that is assigned, press joystick assignment delete button (A) and then press confirm assignment removal OK button (B).


Layout and Joystick Lever Functions

RXA0138484
RXA0138484-UN-01JUL14

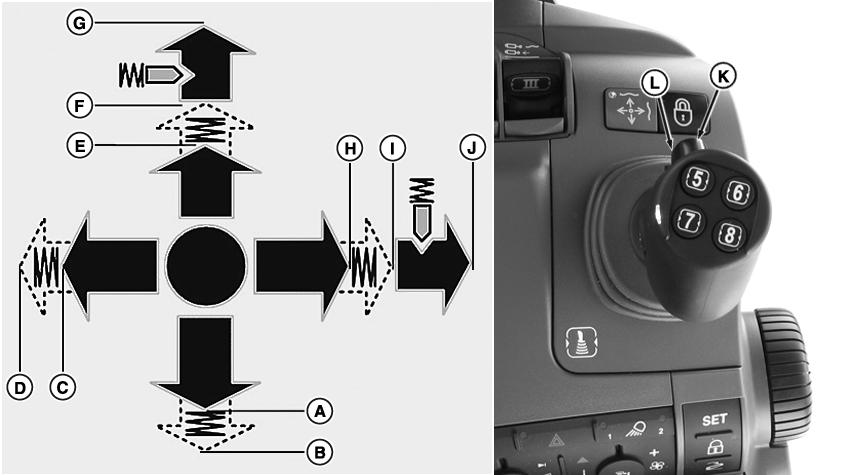

Joystick Movements

NOTE: The description of the joystick movements are made with the assumption that the hoses are connected so that extend is pulling the joystick back, retract is pushing the joystick forward. Moving the joystick to the left is extend and retract is to the right.

A

Pull joystick back to extend.

B

Pull joystick back beyond the point of detectable resistance to extend detent.

C

Move joystick to the left to extend.

D

Move joystick to the left beyond the point of detectable resistance to extend detent.

E

Push joystick forward to retract.

F

Push joystick forward beyond the point of detectable resistance to retract detent.

G

Push joystick all the way forward and engage in detent to activate the float position.

H

Move joystick to the right to retract.

l

Move joystick to the right beyond the point of detectable resistance to retract detent.

J

Move joystick all the way to the right and engage in detent to activate the float position.

K

Move trigger switch all the way upwards to engage in detent to activate the float position.

L

Move trigger switch all the way downwards to engage in detent to activate the float position.

Operator can set any SCV on any axis or rocker switch of the joystick.

NOTE: Some functions shown may not be available depending upon what options the tractor is equipped with.

RD47322,00004CE-19-20140731
