Efficiency Manager™ on the e18™ Transmission

RXA0133712-UN-16JUL13

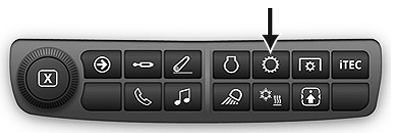

Transmission Shortcut Button on Navigation Bar

RXA0143347-UN-07JUL14

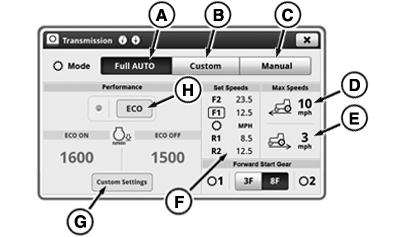

Transmissions Settings Page

RXA0136951-UN-13NOV13

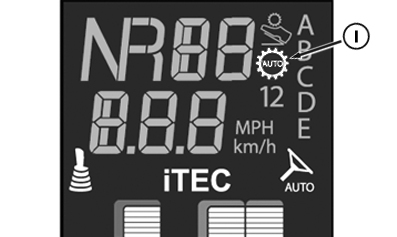

Efficiency Manager™ Icon on Corner Post Display

RXA0136952-UN-25AUG14

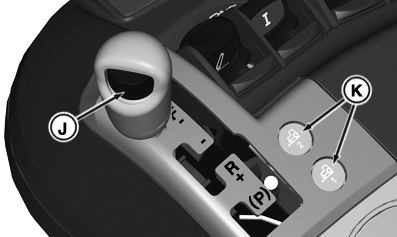

Efficiency Manager™ 1 and 2 Switch

A - Full AUTO Mode

B - Custom Mode

C - Manual Mode

D - Forward Maximum Speed

E - Reverse Maximum Speed

F - Set Speeds Module

G - Custom Settings Button

H - ECO Level Button

I - Efficiency Manager™ Icon

J - Set Speed Adjusting Wheel

K - Efficiency Manager™ Buttons

• Efficiency Manager™ is not to be used during scraper loading.
• Efficiency Manager™ allows for three shift modes Full Auto, Custom and Manual.

Enabling Efficiency Manager™

• Efficiency Manager™, is automatically enabled in Full Auto Mode and Custom Mode.
• To enable Efficiency Manager™ in Manual Mode, select Efficiency Manager™ button 1 or 2 (K) on CommandARM™.

When using Efficiency Manager™ Transmission

• Efficiency Manager™ indicator will light on the corner post display (I).
• Set throttle to full engine rpm. Tractor reaches set speed only if engine throttle is set to full rpm.
• Efficiency Manager™ commands up or down shifts and engine rpm to maintain wheel speed.
• When in Full Auto Mode and Custom Mode, shifting with bump lever automatically changes set speed to next closest available standard set speed.
• Shift decision is based on load conditions, throttle command, and operator settings.
• Target speed is adjusted using set speed adjuster (J) on shift lever.
• If engine speed falls to low levels, transmission will shift into neutral to prevent engine stall.
• Depressing clutch pedal suspends Efficiency Manager™ but not Efficiency Manager™ function. Efficiency Manager™ resumes in startup gear or lower, when clutch pedal is released. To adjust startup gear see Setting Startup Gear in this section.

NOTE: Efficiency Manager™ set speeds can be programmed into iTEC™, but not Efficiency Manager™ on and off.

Disabling Efficiency Manager™ Transmission

Efficiency Manager™ can be disabled only in Manual Mode, and is engaged when an Efficiency Manager™ button (K) is selected again.

IMPORTANT: When disabling Efficiency Manager™, tractor rpm changes to match throttle position, possibly resulting in tractor acceleration.
