Lubricate Steering Pin Bushings (If Equipped)

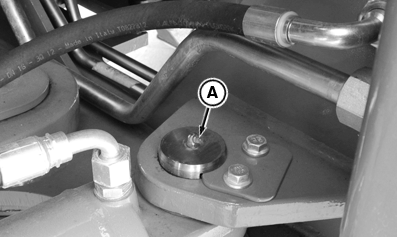

RXA0141971-UN-02JUN14

Right Front Steering Pin

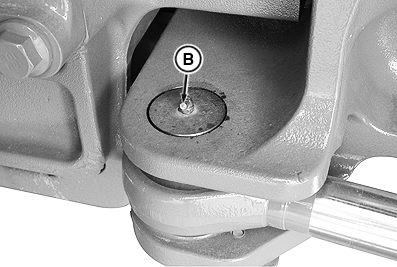

RXA0141972-UN-02JUN14

Right Rear Steering Pin

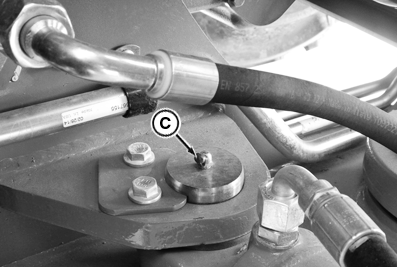

RXA0141973-UN-02JUN14

Left Front Steering Pin

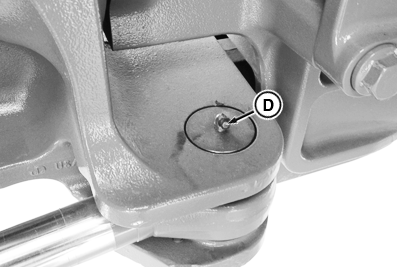

RXA0141974-UN-02JUN14

Left Rear Steering Pin

A - Right Front Pin

B - Right Rear Pin

C - Left Front Pin

D - Left Rear Pin

CAUTION: Place tractor in PARK and remove key before working in hinge area.

Lubricate right front (A) and rear (B), left front (C) and rear (D) steering pin bushings.

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section of this Operator’s Manual.
