PST Lubricate Telescoping Drive Shafts

RXA0141940-UN-02JUN14

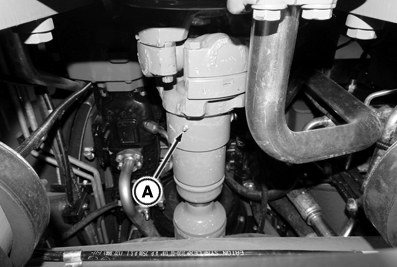

Transmission to Front Axle Drive Shaft

RXA0141964-UN-02JUN14

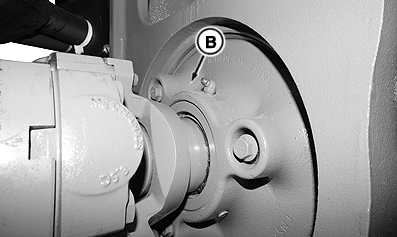

Rear Gudgeon Driveshaft Bearing

A - Transmission to Front Axle Drive Shaft and Gudgeon Drive Shaft Fittings

B - Rear Drive Shaft Gudgeon Bearing Fitting

Lubricate telescoping transmission to front axle drive shaft fitting (A).

Lubricate transmission rear drive shaft gudgeon bearing fitting (B).

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section of this Operator’s Manual.
