Lubricate Rear Hitch Components (If Equipped)

IMPORTANT: Normal service is every 250 hours. If used daily, service every 50 hours.

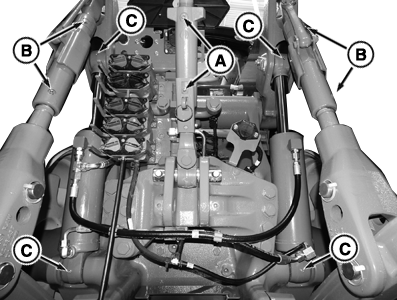

RXA0141824-UN-20JUN14

A - Center Link Lubrication Fittings

B - Lift Link Lubrication Fittings

Lubricate hitch center link lubrication fittings (A) and lift link lubrication fittings(B).

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section of this Operator’s Manual.

Normal service is every 250 hours. If used daily, service every 50 hours.
