Replace Cab Fresh Air Filters and Recirculation Filters

Replace Cab Recirculation Filter

RXA0142919-UN-23JUN14

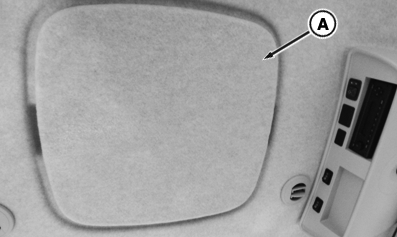

Remove Roof Upholstery

RXA0142920-UN-23JUN14

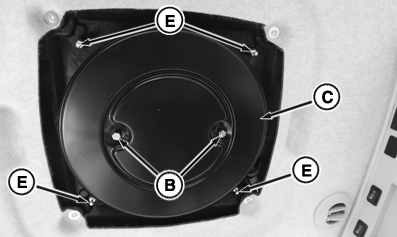

Remove Cover

RXA0142921-UN-23JUN14

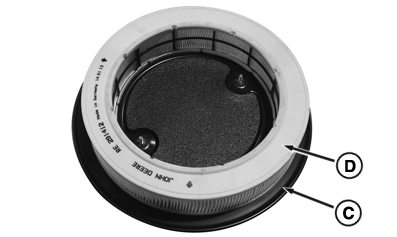

Remove Filter

A - Upholstery Cover

B - Fasteners

C - Cover

D - Filter

E - Ball Stud

CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow instructions in the implement Operator's Manual and those given by chemical manufacturer when using agricultural chemicals.

NOTE: Replacement interval can vary according to operating conditions.

1. Close entry door to prevent debris getting into cab.

2. Remove upholstery cover (A) in the headliner by grabbing outer edges and pulling down.

   NOTE: When removing fasteners (B), hold cover (C) in place with one hand.

3. Remove fasteners allowing cover to be lowered.

   NOTE: Using a clean cloth, wipe down inside and outside filter cover before installing new filter.

4. Remove and discard old recirculation filter (D). Install new filter

5. Install cover (C).

6. Install cover panel by lining up ball studs (E) with clip nuts (not shown) and pushing up.

Replace Cab Fresh Air Filter

RXA0142922-UN-23JUN14

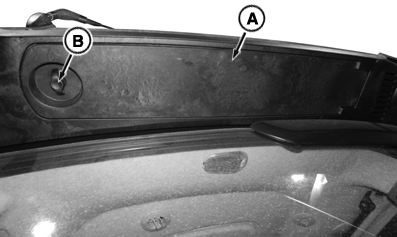

Let Cover Swing By Turning Knob

RXA0142923-UN-23JUN14

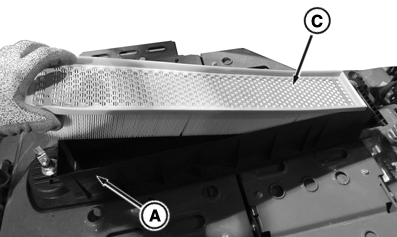

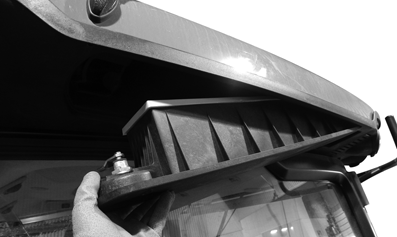

Remove Filter

RXA0142924-UN-23JUN14

A - Cover

B - Knob

C - Filter

CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow instructions in the implement Operator's Manual and those given by chemical manufacturer when using agricultural chemicals.

NOTE: Replacement interval can vary according to operating conditions.

1. Support cover then turn knob (B) allowing cover (A) to swing down.

2. Remove old filter and discard old fresh air filter (C).

   NOTE: Using a clean cloth, wipe down inside and outside filter cover before replacing old filter or installing new filter.

3. Install new filter.

4. Close cover and turn knob 180° to lock latch.
