Connecting Compatible Electronic Equipment

RXA0142571-UN-13JUN14

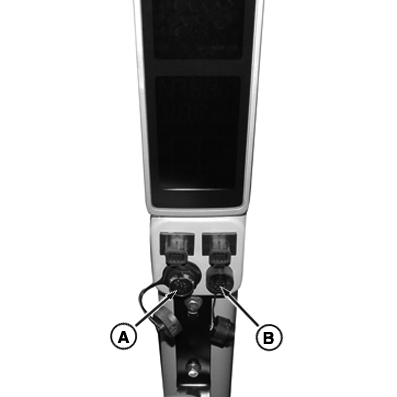

Front Right Corner Post

RXA0131997-UN-06MAY13

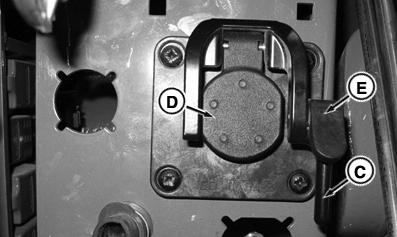

Implement Connector on Tractor Rear

RXA0142616-UN-16JUN14

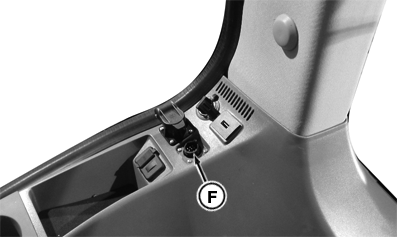

Right Hand Console ISO 11783 Connector

A - GreenStar Connector (Corner Post Left)

B - ISO 11786 Standard Connector (Corner Post Right)

C - Handle

D - Implement Connector (Tractor Rear)

E - Release

F - ISO 11783 Standard Connector (Right-Hand Console)

All 9R Series Tractors are ISOBUS ready and offer connections for implements conforming to both ISO 11786 and 11783 standards. ISO 11786 connector shown on right, provides radar or GPS speed signal. See Configuring Tractor for GPS/Radar in this section of this Operator’s Manual.

GreenStar™ corner post connector (A) allows any GreenStar™ display connection. See your John Deere™ dealer for compatible adapter harnesses.

IMPORTANT: ISO 11783 Connector (F) on right hand console, is only to be used with ISO 11783 compliant components. Other uses could damage tractor electronic components.

ISOBUS ready preparation includes ISO 11783 standardized connector (B) on right hand console and implement connector on tractor rear facilitating tractor/implement communications.

Lift the release (E) when disconnecting implement harness from connector on back of tractor.
