Lubricate Vari-Cool™ Fan Drive (9.0 and 13.5 Final Tier 4 and Stage IV Engines Only)

1.
   RXA0142201-UN-06JUN14

   Side Panel


   RXA0142202-UN-09JUN14

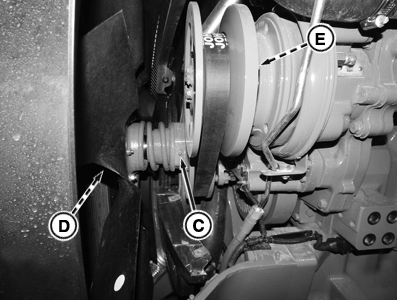

   Fan Driver and Driven Shaft Lubrication Fittings (13.5 L Engine Only)


   RXA0142203-UN-09JUN14

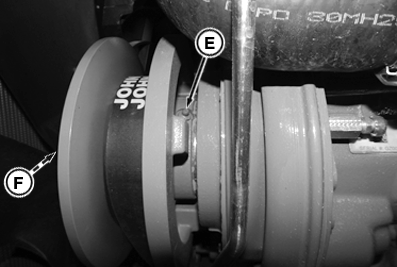

   Fan Driver Pulley Lubrication Fitting

   A - Cap Screws

   B - Side Panel

   C - Fan Shaft Fittings

   D - Driven Vent Opening

   E - Fan Pulley Fitting

   F - Driver Vent Opening

   Raise engine hood.

---




2. Remove cap screws (A) and remove engine side panel(B).

3. IMPORTANT: Grease only one driver and driven shaft fittings. The fitting on opposite side provides fan balance and service position convenience.

   If more than 50 pumps of grease required, contact your John Deere™ dealer to replace internal seals and inspect shaft splines.

   NOTE: Fan shaft fitting (C) is only available on 13.5 L Engines only.

   Pump grease into shaft lubrication fitting (C) until grease is visible coming from driven shaft vent (D).

4. Grease fan driver pulley lubrication fitting (E).

5. Reinstall diverter panel and tighten cap screws.

   Item	Measurement	Specification
   Diverter Panel Cap Screws
   Cap Screw	Torque	20 N·m (177 lb.-in.)

6. Reinstall finger guard and tighten cap screws.

7. Close and secure hood.
