Change Engine Oil and Filter—15.0 L Engine

RXA0132814
RXA0132814-UN-30MAY13

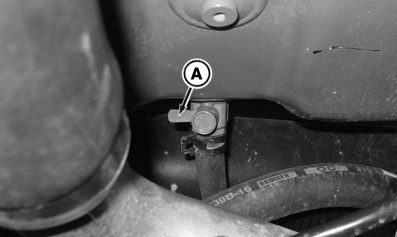

Engine Oil Drain Valve (Inside Right-Hand Engine Side Frame)

RXA0141929
RXA0141929-UN-02JUN14

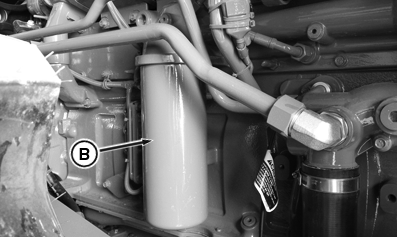

Engine Oil Filter

A - Engine Oil Drain Valve

B - Oil Filter

IMPORTANT: Sulfur content should not exceed 0.10%. Sulfur content less than 0.10% is preferred. Refer to Fuel, Lubricants and Coolant section for more information on oil change intervals.

NOTE: No initial break-in service required for new or rebuilt engines. The maximum service interval is the same as the service interval recommendations listed in Engine Oil and Filter Service Intervals for your engine. To confirm which engine your tractor is equipped with, see Identification Numbers Section - Record Engine Serial Number in this Operator's Manual.

For subsequent oil changes, see Engine Oil and Filter Service Intervals for your engine located in the Fuel, Lubricants, and Coolant Section of this Operator's Manual.

  1. Operate engine approximately 5 minutes to warm oil.

  2. Stop engine.

  3. NOTE: Use a catch oil container with 75.7 L (20 gal) capacity and direct oil flow with attached valve hose.

    Locate engine drain valve (A) located inside right-hand engine side frame.

  4. Turn crankcase drain valve (A) to drain engine oil

  5. Wait a few minutes, then close drain valve after oil is drained.

  6. Remove filter (B) and remove old gasket. Clean filter mounting surface with clean dry cloth.

  7. Apply a thin film of oil to new gasket. Fill filter with clean engine oil, about .5 gallon and install new filter.

  8. Hand-tighten filter element, then turn filter element 3/4 to 1 turn after gasket contact, refer to instructions on filter. Filter wrench is required. Do not overtighten.

    Crankcase Capacity with Filter

    15.0 L Cummins Engine..............43.5 L (11.5 gal)

  9. RXA0141925
    RXA0141925-UN-03JUN14

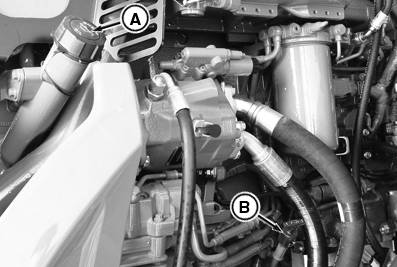

    Fill Tube

    RXA0141926
    RXA0141926-UN-03JUN14

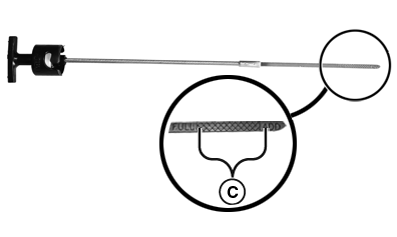

    Dipstick

    A - Fill Cap

    B - Dipstick

    C - Crosshatch Area

    Remove engine oil fill cap (A) and refill crankcase using fill tube with seasonal viscosity grade oil.(See Fuels, Lubricants, and Coolant Section.)


  10. Start and run engine for a two minutes. Then stop engine and check for oil leaks.

  11. NOTE: Crosshatched area is considered FULL. Engine oil level indicator is a dipstick with a "crosshatched" area with a "safe" zone. Anywhere in the dipstick crosshatched safe zone is considered full.

    Recheck oil level with dipstick, to ensure that oil level is in crosshatched “safe” zone area (C).

SV81855,000027B-19-20140627
