Clean Diesel Exhaust Fluid (DEF) Tank Filler Neck Filter

RXA0140510
RXA0140510-UN-27MAY14

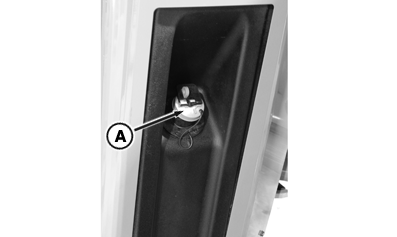

DEF Tank Cap

RXA0140511
RXA0140511-UN-27MAY14

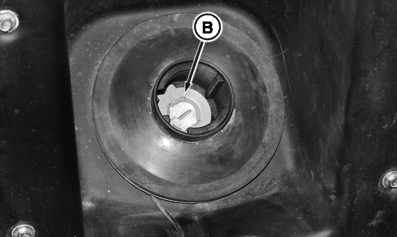

Filter Retainer

RXA0140512
RXA0140512-UN-27MAY14

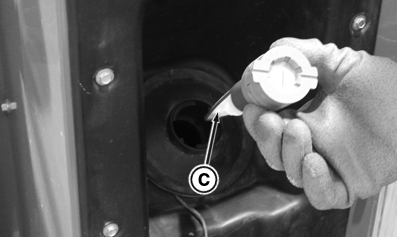

Filler Neck Filter

A - DEF Tank Cap

B - Filter Retainer

C - Filler Neck Filter

NOTE: If DEF fill slows, tank filler neck filter will need to be cleaned.

  1. Shut engine off.

  2. Open DEF tank cap (A).

  3. Turn filter retainer (B) counterclockwise until it unlocks, then pull straight out of DEF tank.

  4. Clean filler neck filter (C) with warm water to remove any debris..

  5. Install in reverse order.

SV81855,000027F-19-20140613
