Adjusting Steering Wheel and Column

RXA0133289-UN-25JUN13

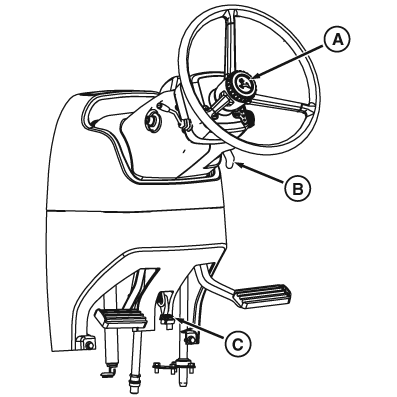

Adjusting Steering Wheel and Column

A - Steering Wheel Telescope Release Knob

B - Steering Wheel Tilt Release Lever

C - Steering Column Tilt Release Lever

Steering wheel can be adjusted in or out, up or down to provide comfortable driving position. For improved entry or egress, entire steering column can be pivoted up, then returned to previously set position with single control.

Telescope: Rotate steering wheel telescope release knob (A) counterclockwise. Extend or retract steering wheel to desired position. Rotate knob clockwise to lock.

Tilt: Pull up on steering wheel tilt release lever (B) and move steering wheel to desired position. Release lever to lock.

Memory: Push down on steering column tilt release lever (C). Fully raise steering column. Release lever to latch column at top of travel.

Push down on steering column tilt release lever, latch releases. Lower steering column to previous tilt setting.
