Use Foot Decelerator

RXA0133711-UN-16JUL13

Engine Shortcut Button on Navigation Bar

RXA0130615-UN-31JAN13

Engine Page

RXA0119445-UN-04AUG11

Foot Decelerator

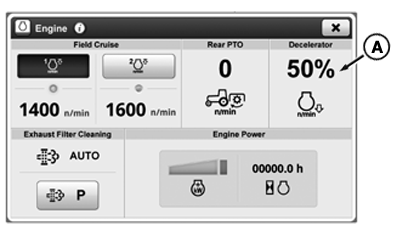

A - Decelerator Percentage Module

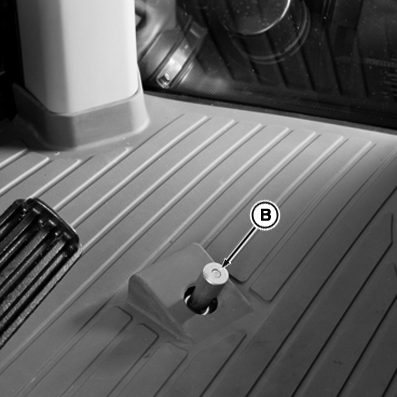

B - Foot Decelerator

NOTE: Engine must be running to operate foot decelerator.

Foot decelerator is used to slow down when turning at end of field.

NOTE: When using Efficiency Manager™ and depressing foot decelerator, transmission downshifts to startup gear may occur in order to reduce wheel speed. To reduce number of shifts (see Setting Startup Gears in Operating the e18™ Powershift Transmission section of this Operator’s Manual).

Adjust Engine RPM Decelerator Percentage:

1. Press Engine Shortcut Button on Navigation Bar.

2. Select decelerator percentage module (A) to adjust maximum engine (throttle) rpm. Decelerator percentage can be adjusted from 50 to 95 percent.

3. Push foot decelerator (B) to lower engine rpm. Speed resumes when foot decelerator is released.
