Backup Alarm (If Equipped)

RXA0142551-UN-13JUN14

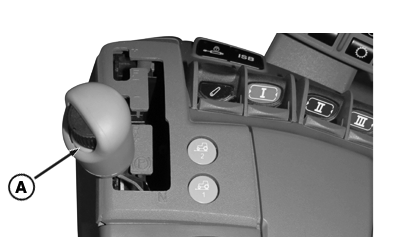

Transmission Shift Lever

RXA0141854-UN-02JUN14

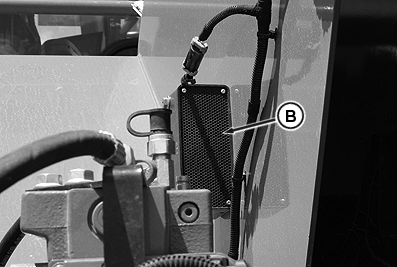

Backup Alarm

RXA0141855-UN-02JUN14

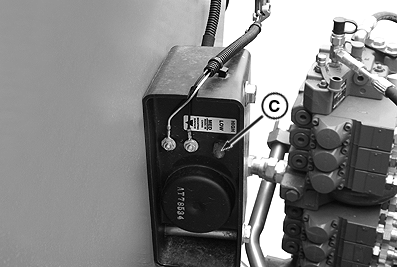

Volume Control (Rear View)

A - Transmission Shift Lever

B - Backup Alarm

C - Volume Control Knob

CAUTION: Backup alarm emits an audible sound to alert anyone near by. Tractor will be traveling in a reverse direction.

NOTE: Backup alarm (B) is located on rear cross member.

Backup alarm will sound when key switch is ON and transmission shift lever (A) is in reverse gear.

Alarm can be set at three different volume levels:

• High
• Low
• Medium

Turn volume control knob (C), on back of alarm, to desired setting.
