Category 5 Heavy Duty Drawbar Support Load Limitations (If Equipped)
IMPORTANT:
RXA0141870-UN-30MAY14

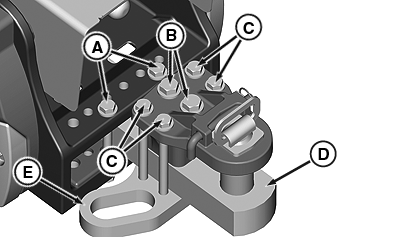

A - Cap Screws, M20
B - Cap Screws, M22
C - Cap Screws, M20
D - Drawbar
E - Drawbar Brace
Heavy duty drawbar support must be used when maximum static vertical load exceeds 2043 kg (4500 lb.).
|
Maximum Static Vertical Drawbar Load |
|
|---|---|
|
Short Drawbar Position |
5440 kg (12,000 lb.) |
|
Long Drawbar Position |
4082 kg (9,000 lb.) |
Attach drawbar brace (E) and hammerstrap to drawbar (D) using M22 cap screws (B) and M20 cap screws (A) and (C).
| Item | Measurement | Specification |
| Torque Specifications | ||
| M20 Cap Screws | Torque | 610 N˙m (450 lb.-ft.) |
| M22 Cap Screws | Torque | 750 N˙m (553 lb.-ft.) |
IMPORTANT: Drive slowly when moving heavy draft loads.
|
TO84419,0000101-19-20140708 |
