Selecting Drawbar Position

RXA0141864-UN-13JUN14

RXA0142228-UN-11JUN14

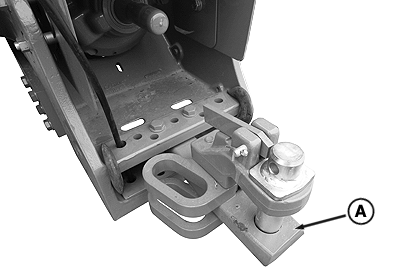

A - Drawbar

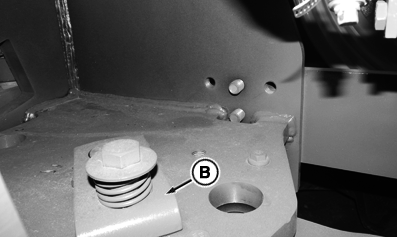

B - Drawbar Pin

IMPORTANT: Drawbar must be positioned, as instructed in Attaching PTO Driven Implement in this section of this Operator’s Manual.

Drawbar (A) length can be extended by following steps listed below:

1. Loosen drawbar locking bolts.

2. Remove front drawbar pin (B).

3. Slide drawbar (A) to desired position.

4. Install front drawbar pin (B).

5. Tighten drawbar locking bolts to specification.

   Item	Measurement	Specification
   Drawbar Locking Bolts
   Bolt	Torque	435 N·m (322 lb.-ft.)
