Adjusting Drawbar Side-to-Side Movement

1.

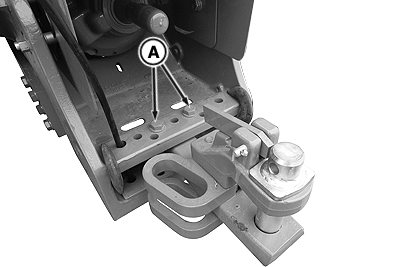

   RXA0141865-UN-13JUN14

   A - Locking Bolts

   Remove drawbar locking bolts (A).

---




2. Slide drawbar to desired position.

3. Install a locking bolt against each side of drawbar.

   Item	Measurement	Specification
   Drawbar Locking Bolts
   Bolt	Torque	435 N˙m (322 lb.-ft.)
