Installing Clevis Assembly (Category 4 Drawbar)

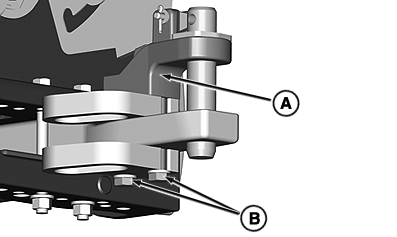

RXA0141898-UN-05JUN14
A - Clevis Assembly
B - Cap Screws
Clevis assembly (B) must be attached only to top of drawbar. Tighten two cap screws to specification (B).
| Item | Measurement | Specification |
| Clevis Cap Screws | ||
| Cap Screw | Torque | 750 N˙m (553 lb.-ft.) |
|
TO84419,0000104-19-20140612 |
