Installing Clevis Assembly (Category 5 Drawbar)
RXA0141899-UN-05JUN14
A - Clevis Assembly
B - M24 Cap Screws
C - M20 Cap Screws

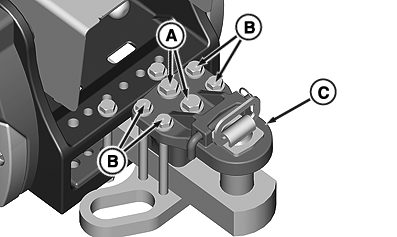

Clevis assembly (A) must be attached only to top of drawbar.Tighten two center M24 cap screws (B) and four outer cap screws (C) to specification.
| Item | Measurement | Specification |
| M24 Clevis Cap Screws (B) | ||
| Cap Screw | Torque | 750 N˙m (553 lb.-ft.) |
| M20 Clevis Cap Screws (C) | ||
| Cap Screw | Torque | 610 N˙m (450 lb.-ft.) |
|
